Pre Purchase Inspection Report

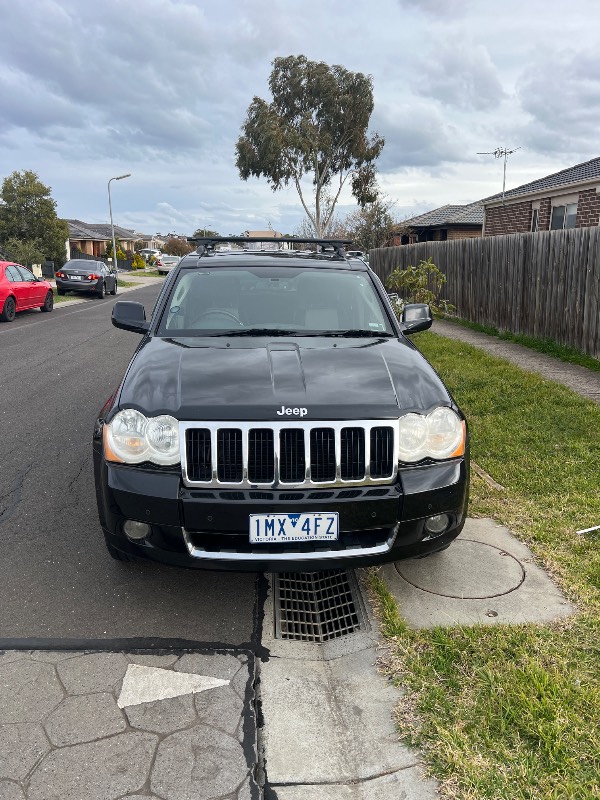

Jeep Grand Cherokee
Reference Number: 9fc6d577-a121-4057-bc86-011f379eeeff
Vehicle Information
VIN
1J8HD58M89Y507991
Model Year
2009
Odometer Reading
258301
Registration Number
1MX4FZ
Report Summary
Overall Rating
Ray / Inspector
Inspector’s overall review
The 2008 Jeep Grand Cherokee presented for inspection was found to be in generally good condition overall, consistent with its age and mileage. The engine, transmission, and other major systems performed as expected at the time of inspection. The main concern identified was the airbag warning light displayed on the dashboard. Diagnostic testing indicated a communication loss between the airbag system and the vehicle’s ECU, traced to the driver’s airbag module within the steering wheel. Other than this airbag fault, the vehicle appeared to be in good working order, with no significant mechanical or cosmetic issues detected. Recommendation: The vehicle is considered a good buy, provided the airbag fault is repaired.
| Part | Comments |
|---|---|

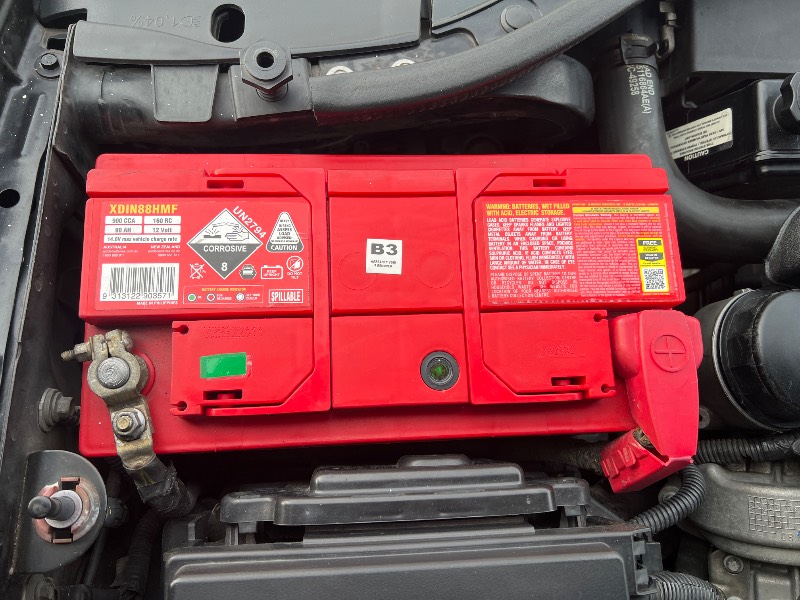

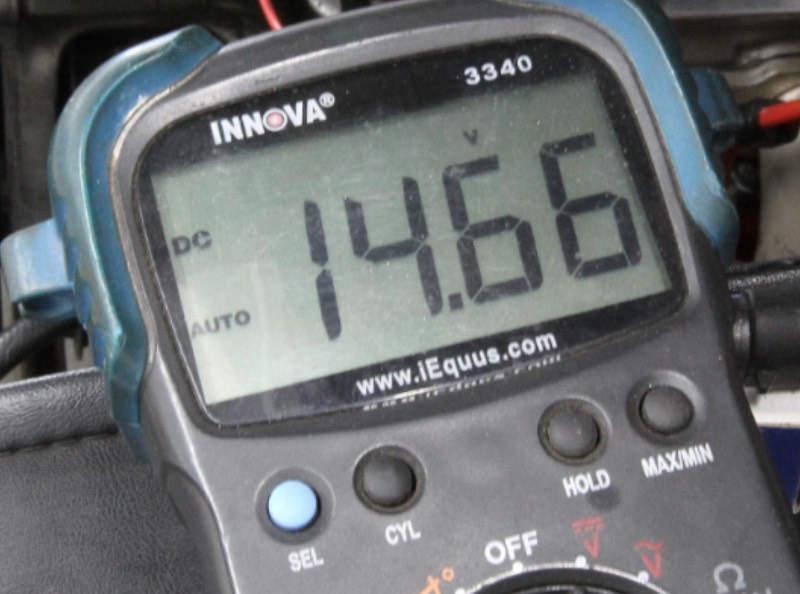

| Start-Up Battery Charge & Health Test | |
| Alternator Operation | |
| Engine Bay Fluid Levels | Engine oil fluid level is low. |
| Fluid Leaks and Residue | No visible leaks at the time of inspection |

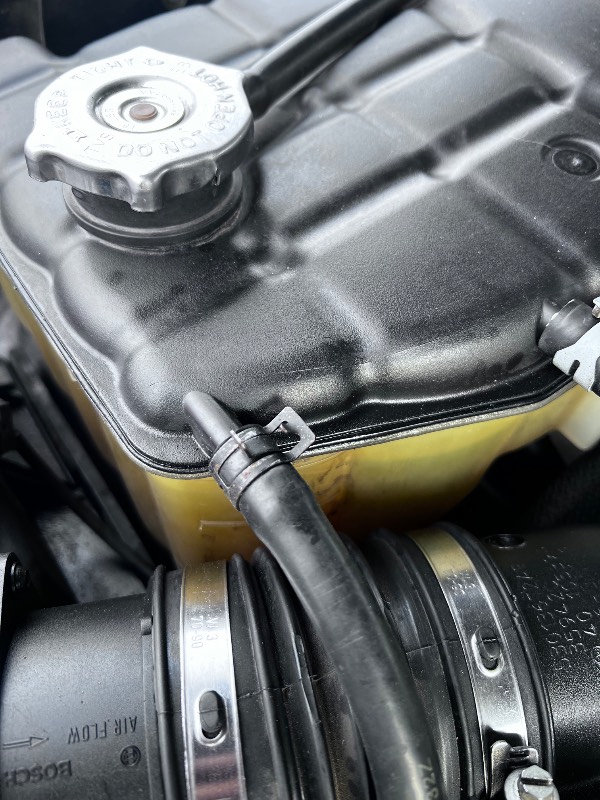

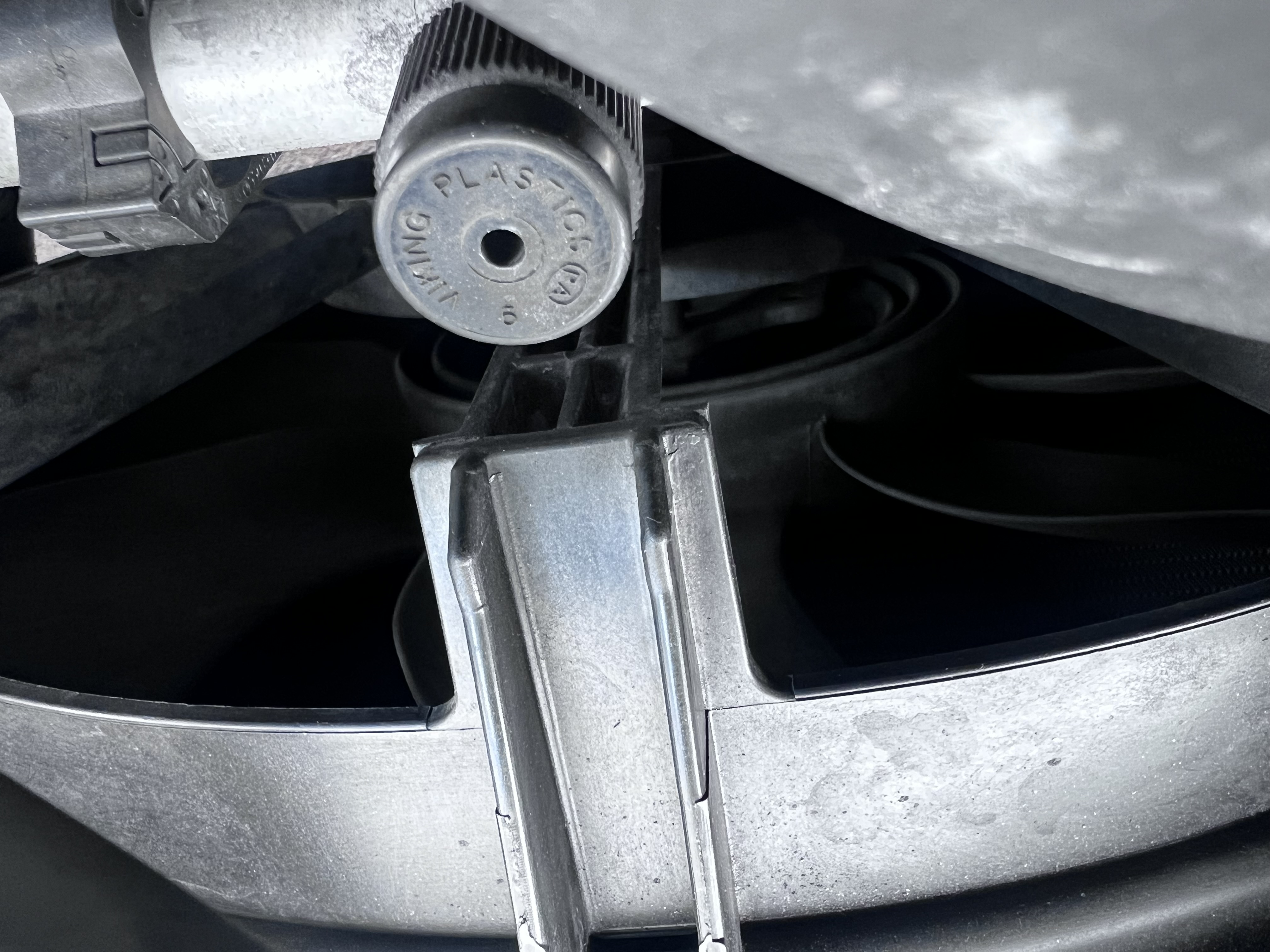

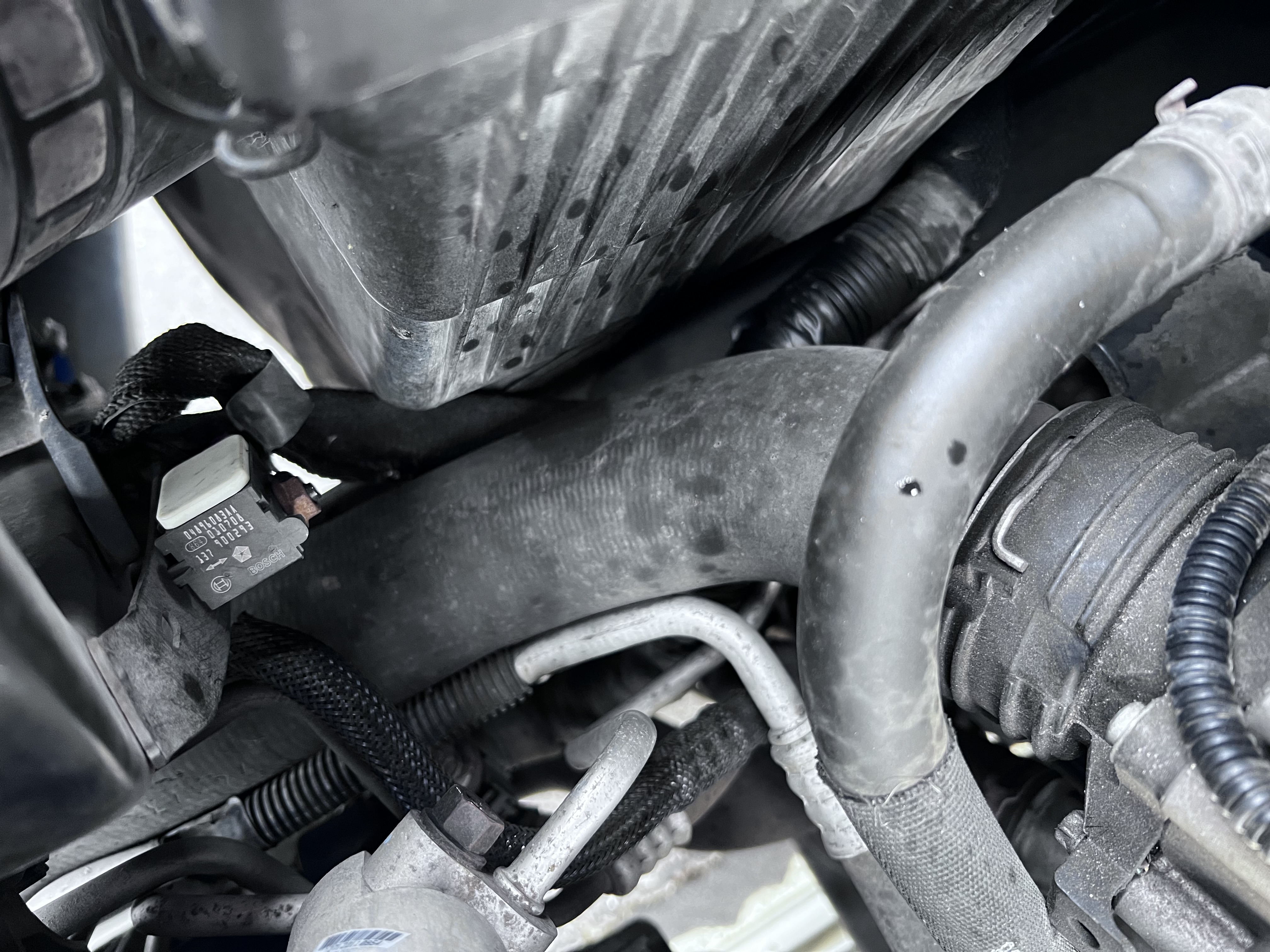

| Radiator fan, Hoses & Reservoir | |
| Thermostats Housing and water pump | |

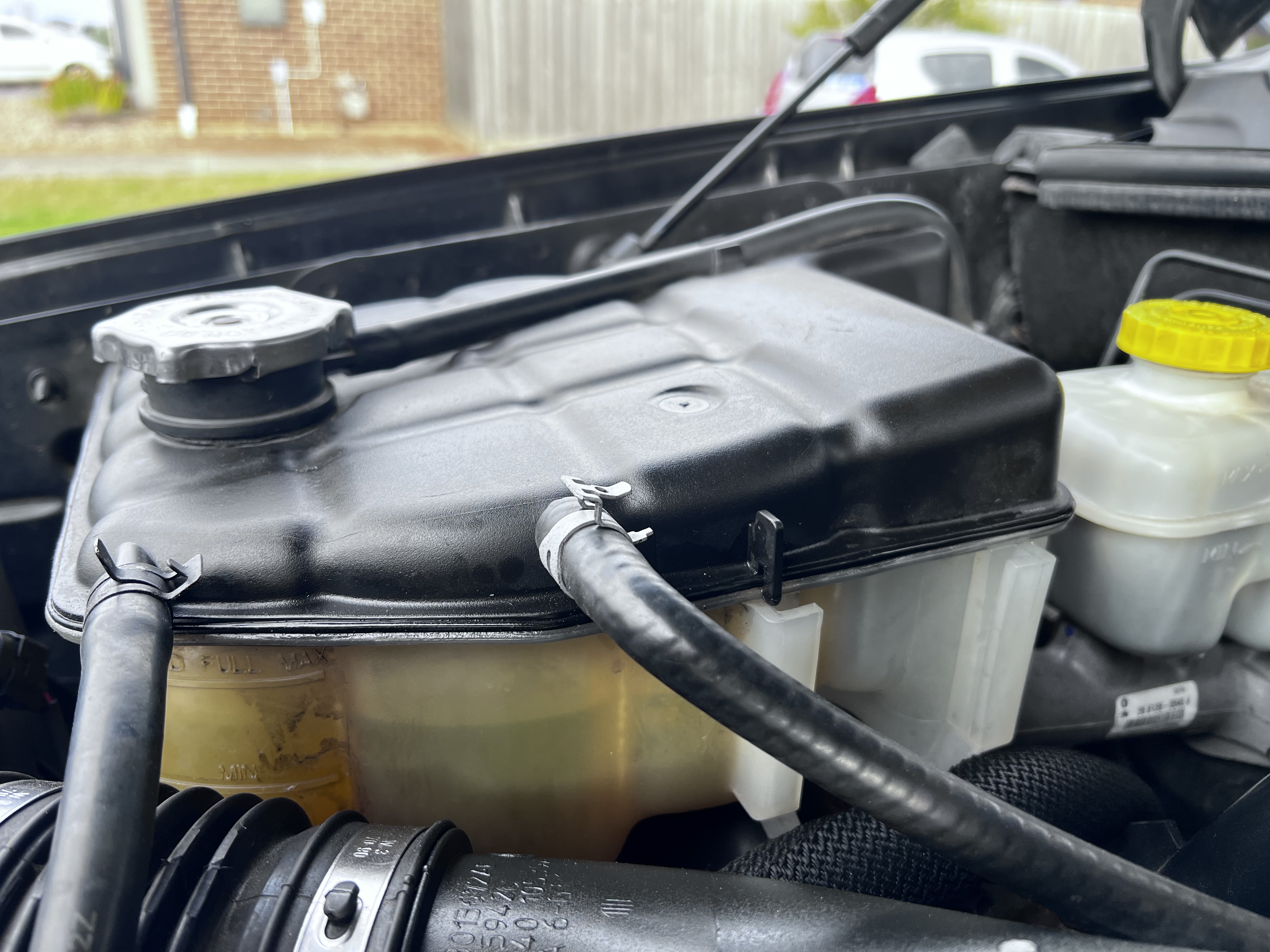

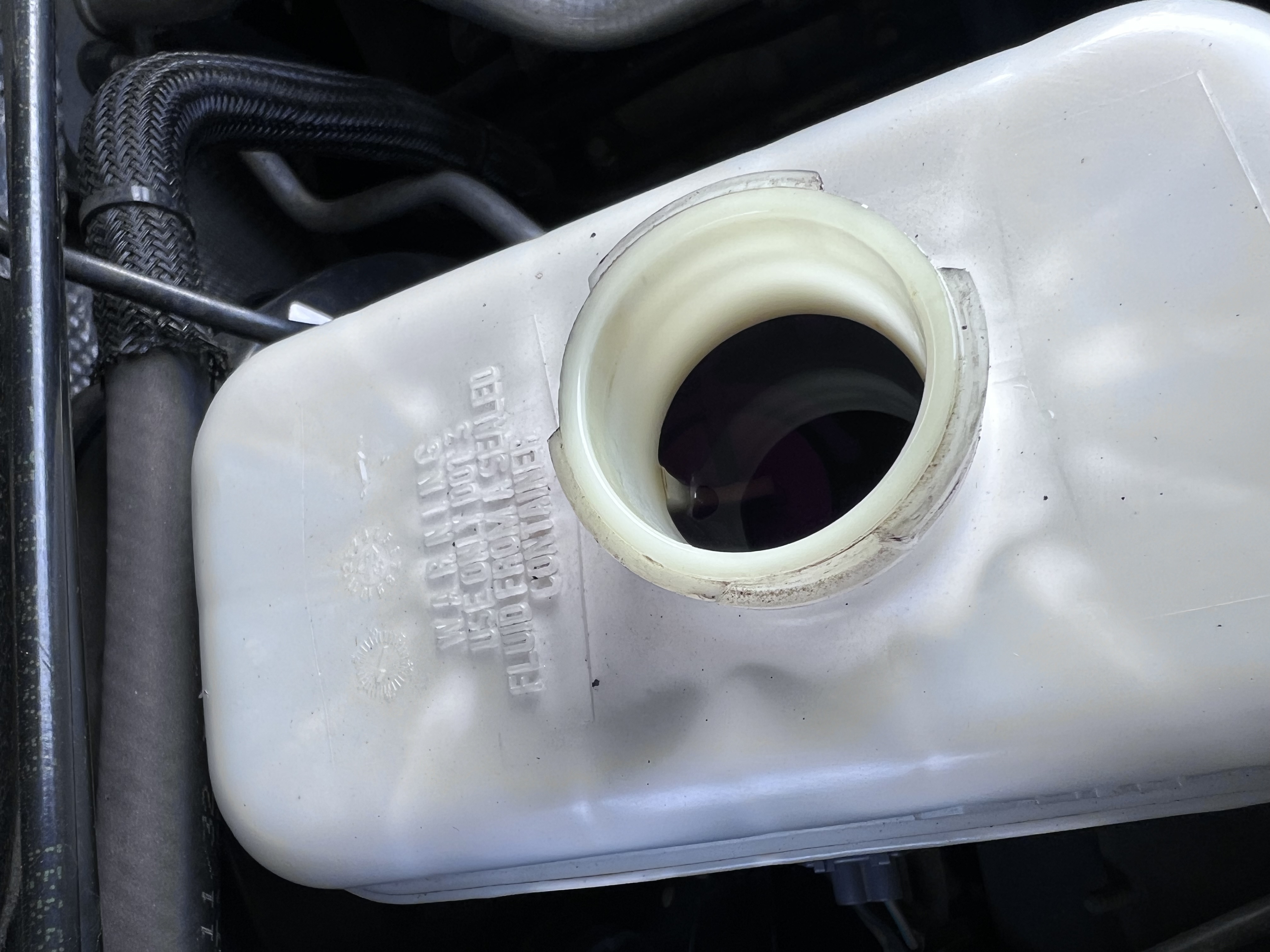

| Coolant condition |
|
| Heater hoses & heater core | |
| A/C condenser, Compressor & lines | |

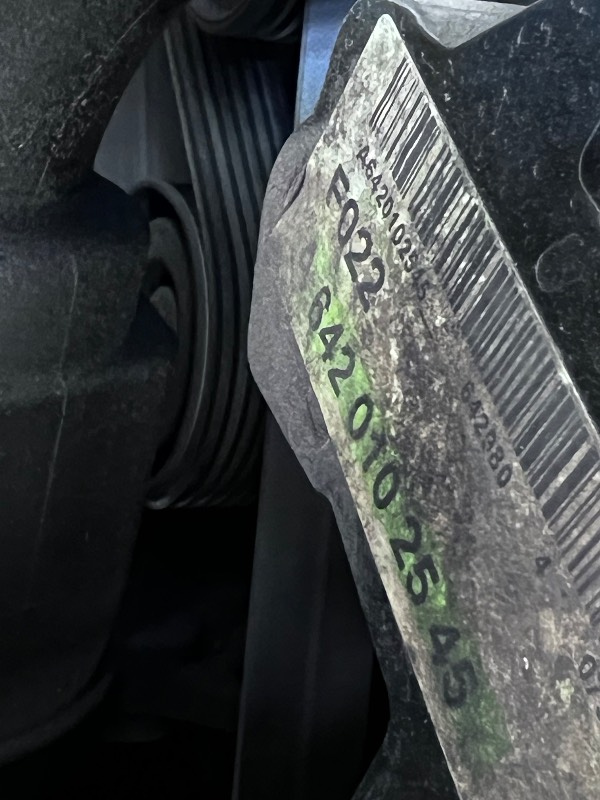

| Drive belt and tensioner | |

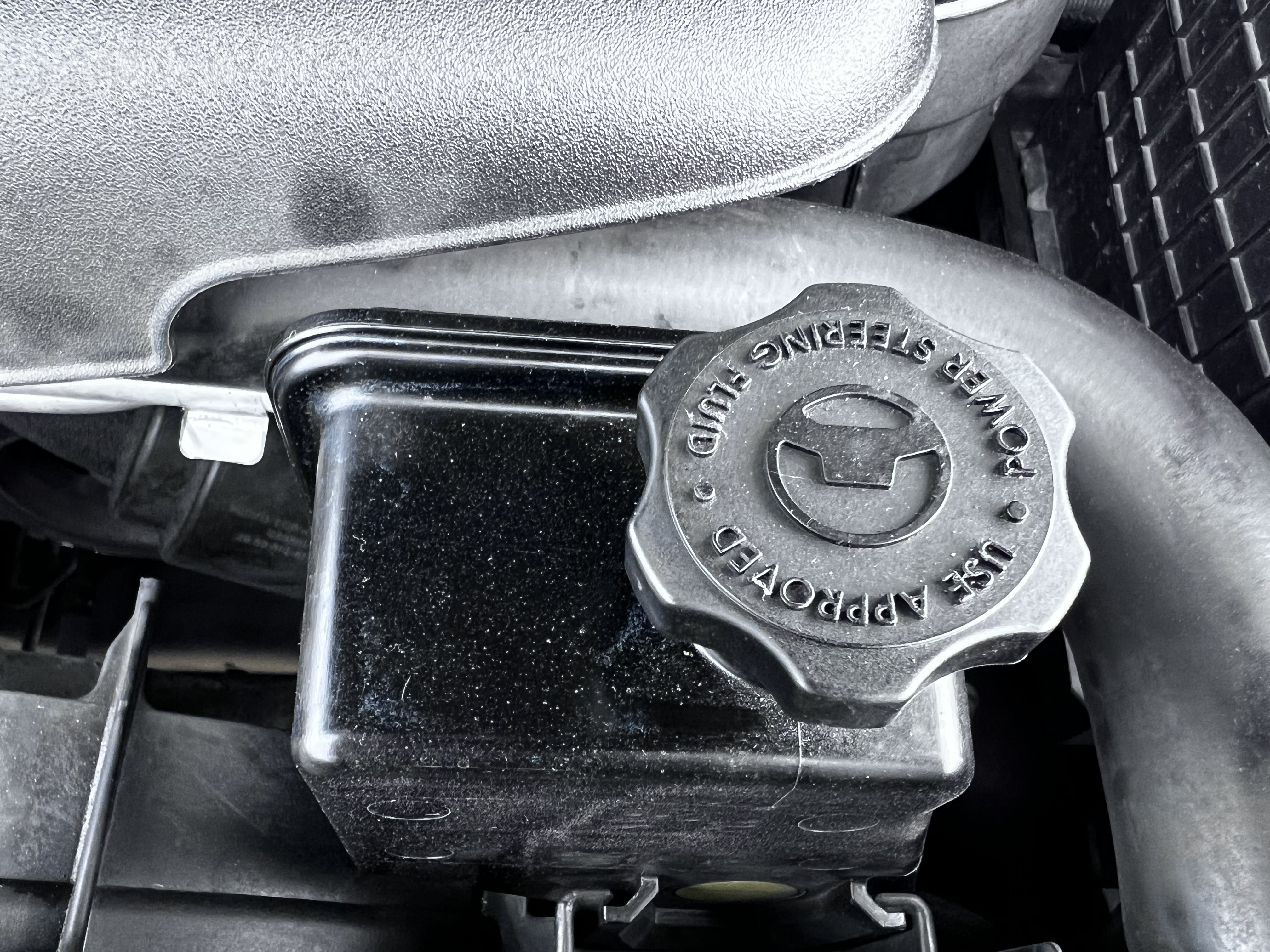

| Power Steering pump and hoses | |
| Electronic power steering |
|

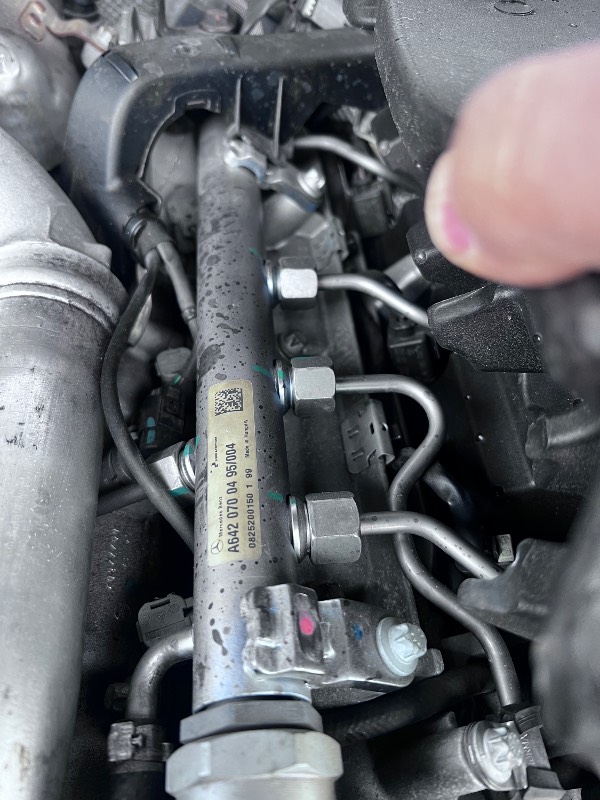

| Fuel pump / Fuel line / fuel injectors | |
| Starter motor |
|

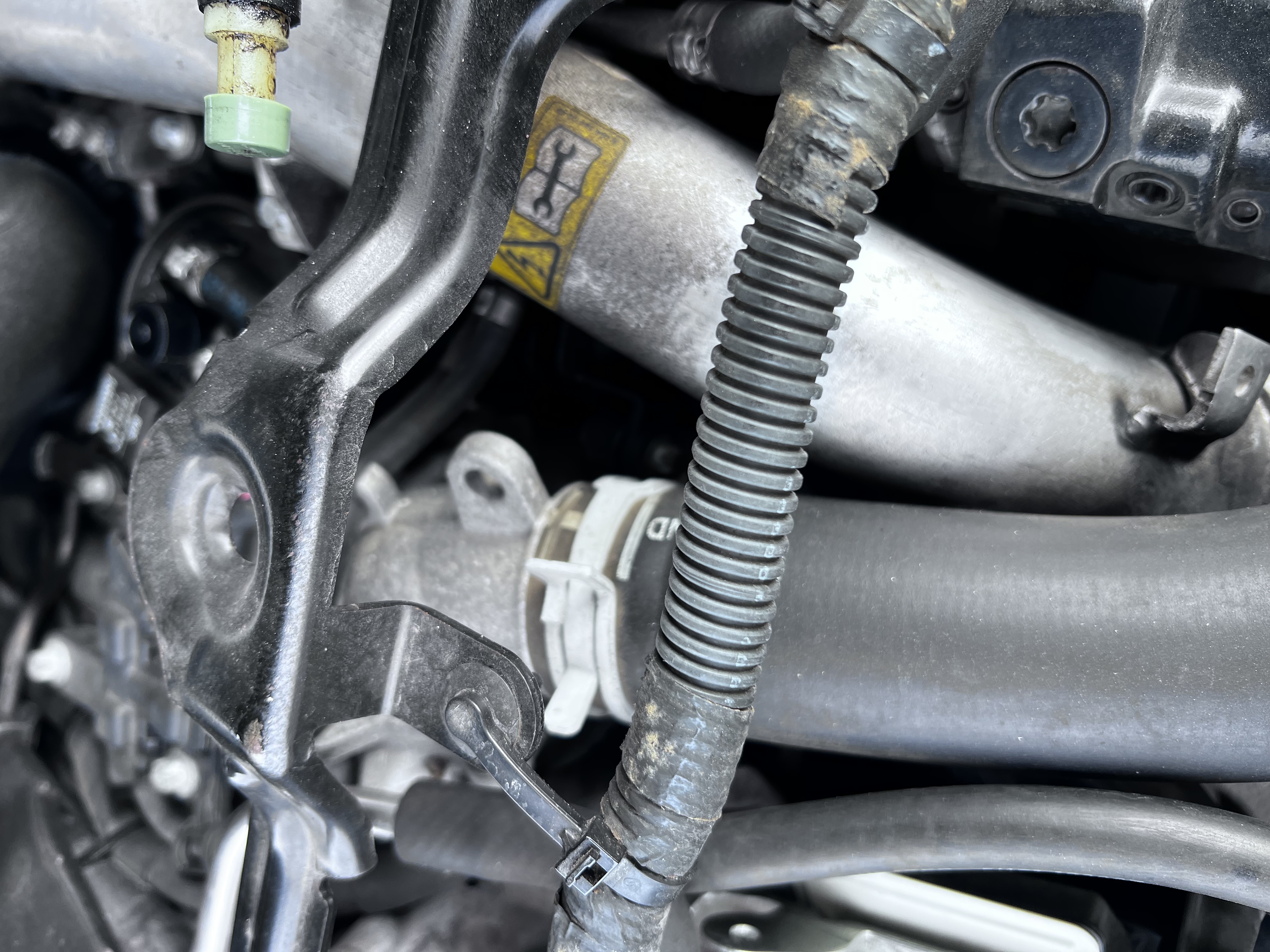

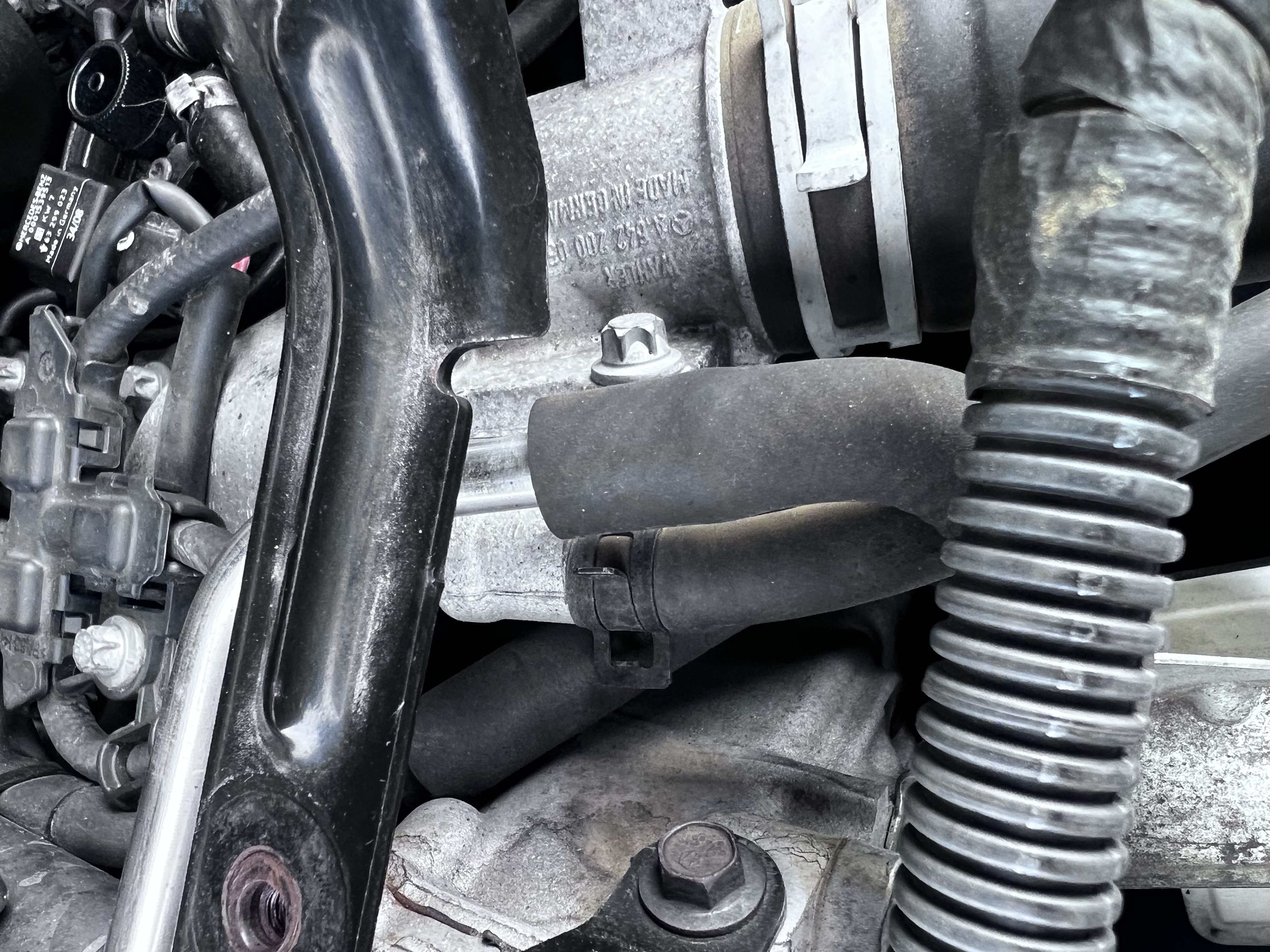

| Intake manifold | Swirl motor has been bypassed with a resistor (common temporary fix). This disables swirl flap function and may affect performance. Proper repair requires intake manifold/swirl motor replacement.
|

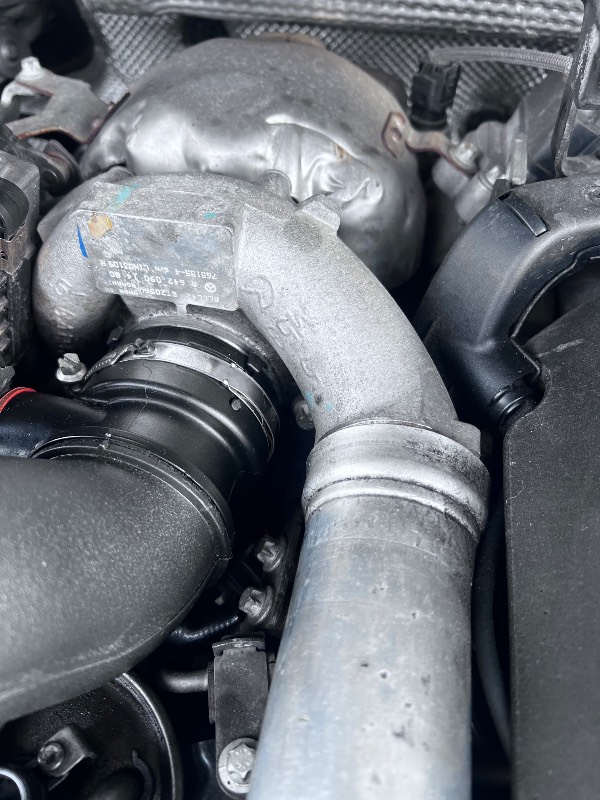

| Turbo charger | |
| Super Charge |
|
| Engine fuse box | |

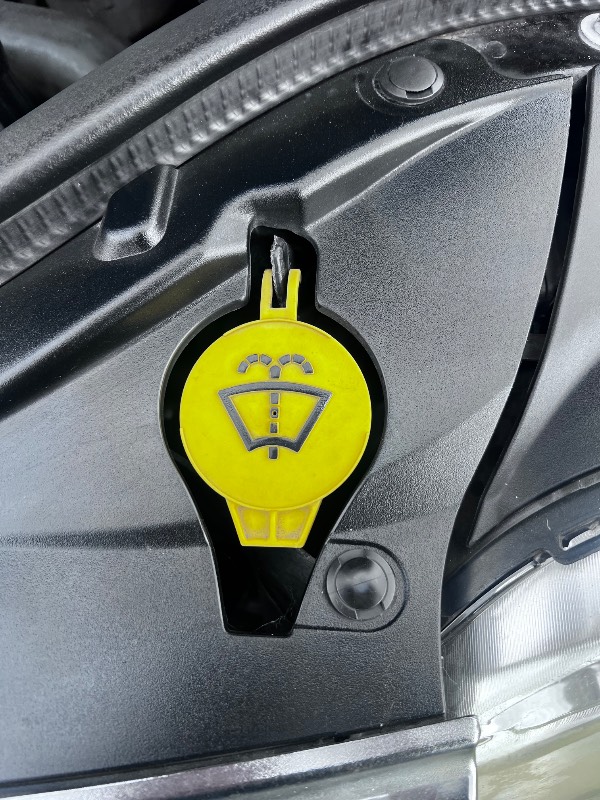

| Washer bottle | |

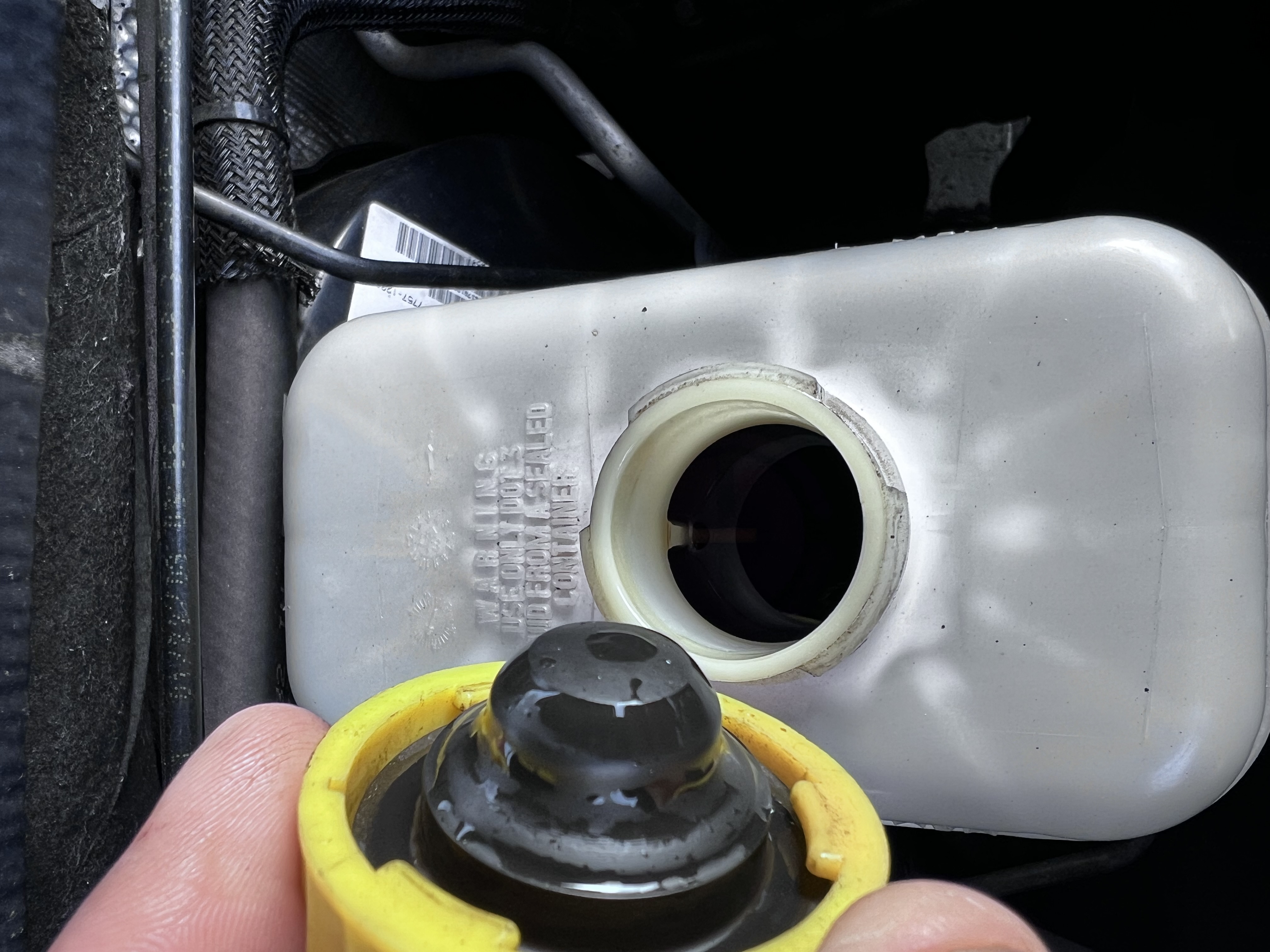

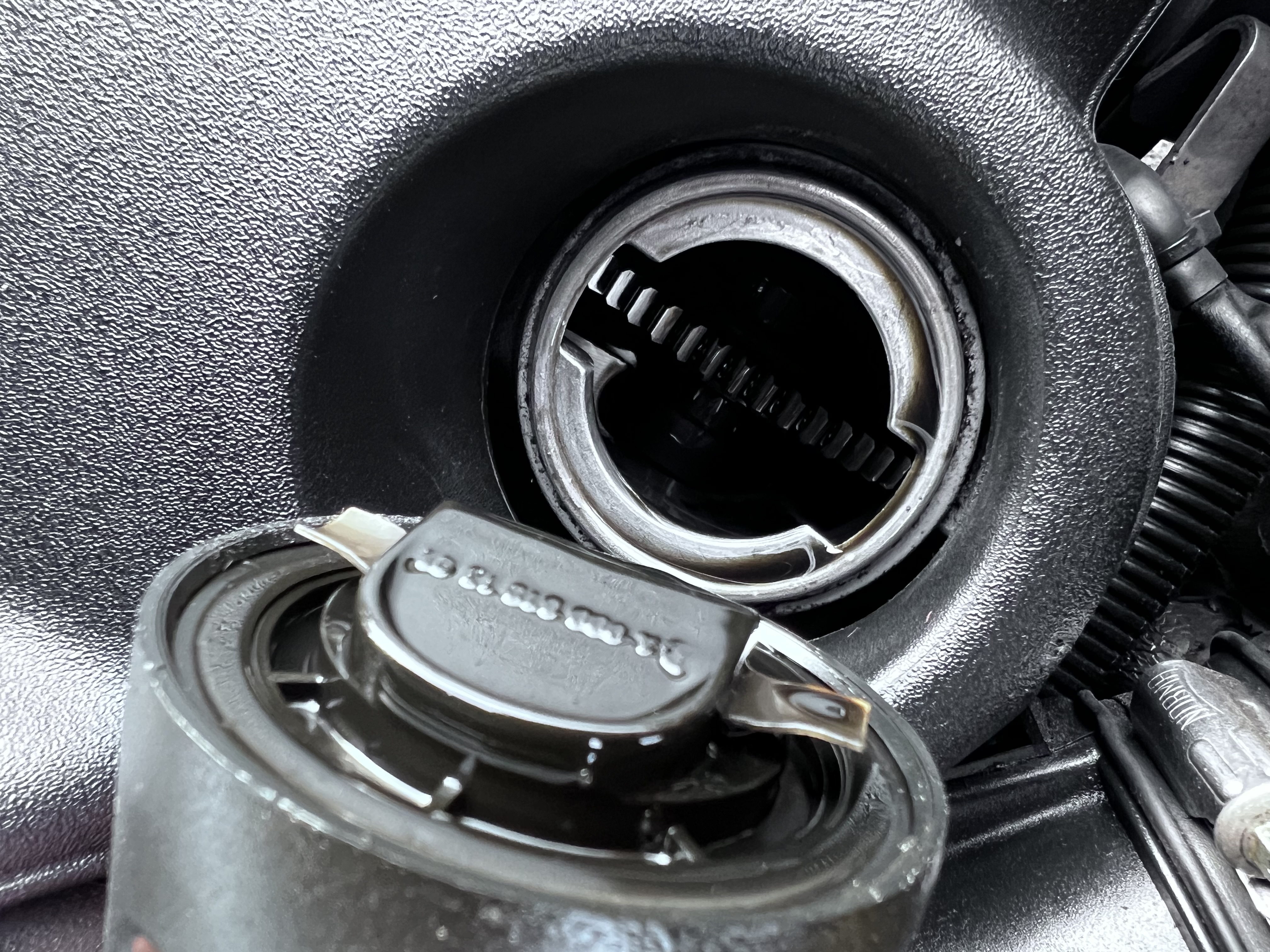

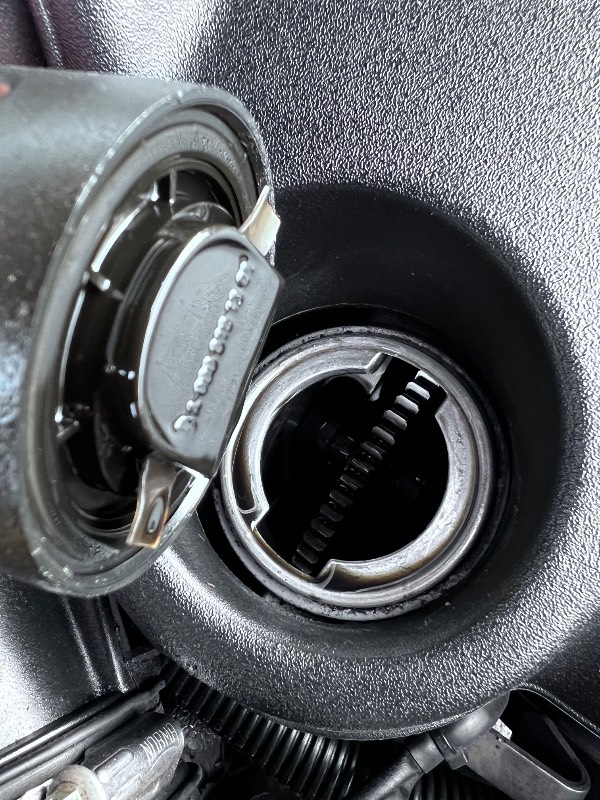

| Oil cap deposit and oil condition | |
| Engine oil leak | No fresh leaks detected. Residual oil deposits noted, typical for vehicle’s age and type. |

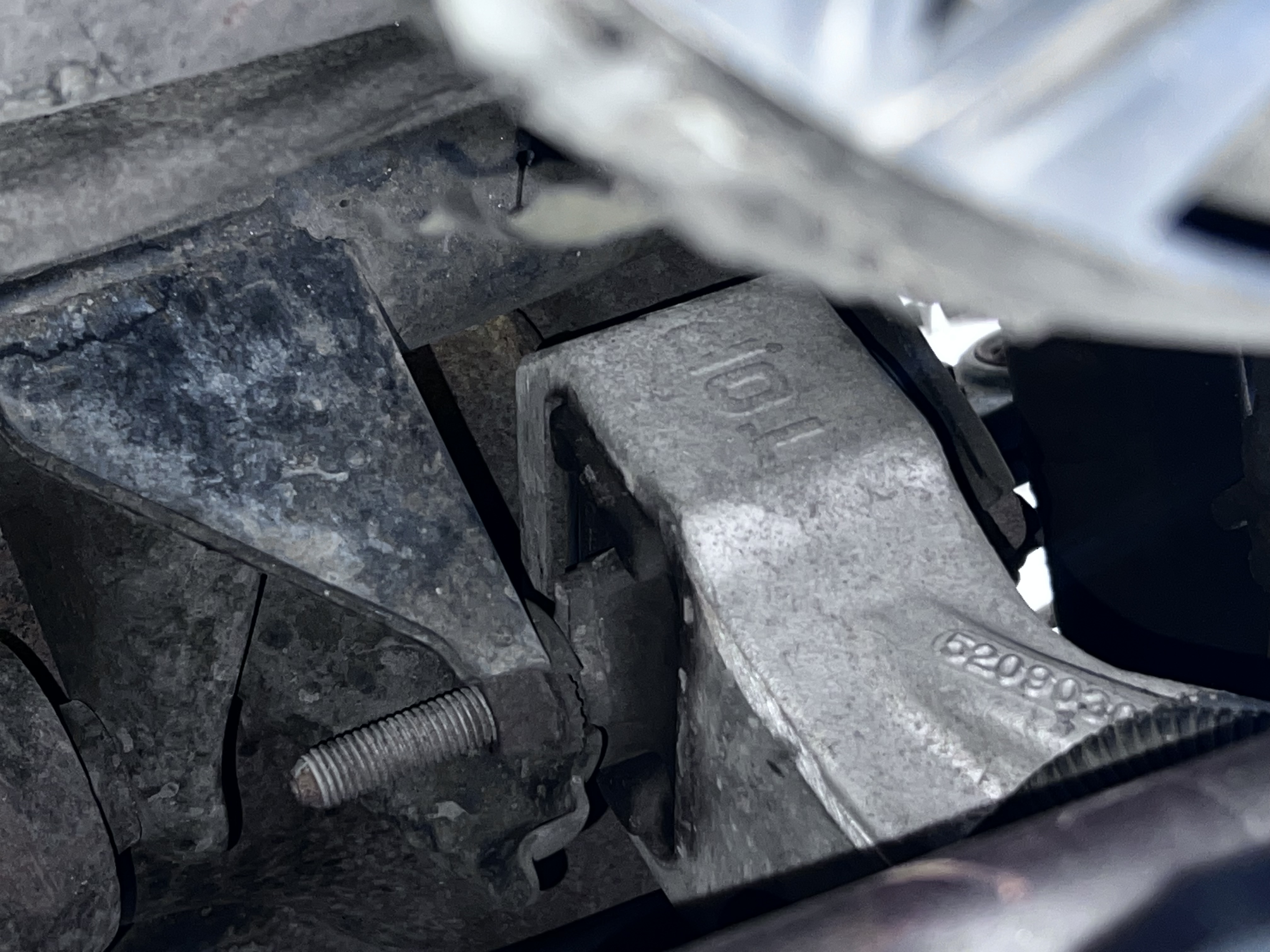

| Engine mounts | Upper mount needs replacement. |

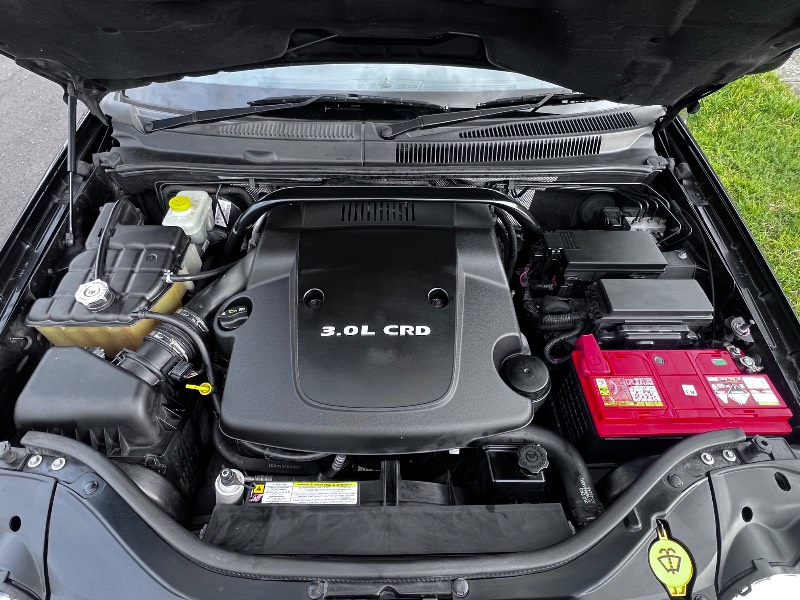

| Engine Health | Engine presented in good condition consistent with the vehicle year, model and kilometres. |
| Head gasket leakage | No visible head gasket leakage at the time of the inspection
|
| Engine / Motor Noise | Normal diesel engine noise
|
| Engine idling | Engine idle normally at the time of the inspection
|
| Ignition System |
|
| ECU Scan | There are 9 active fault codes present, including P0671, P0672, P0675 (glow plug circuit faults), C0077, U0151, B142E, B1422, B143E, and B143B. These indicate issues with the glow plug system, electronic control modules, and communication errors. Further diagnosis and repair are recommended. |
| Part | Comments |
|---|---|

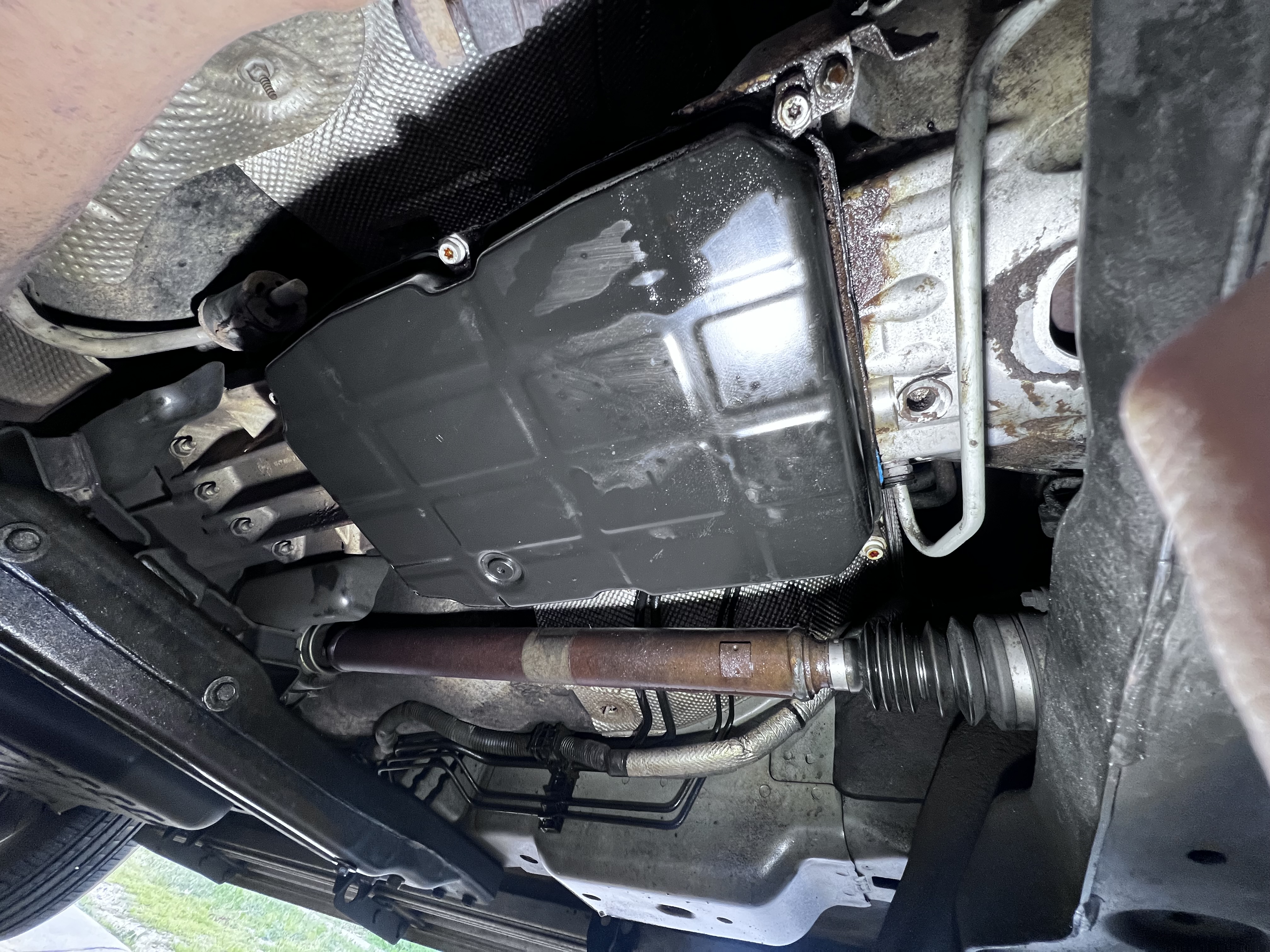

| Gear Box / Transmission Mounts | Invisible
|
| Clutch padle and Slave Cylinder |
|

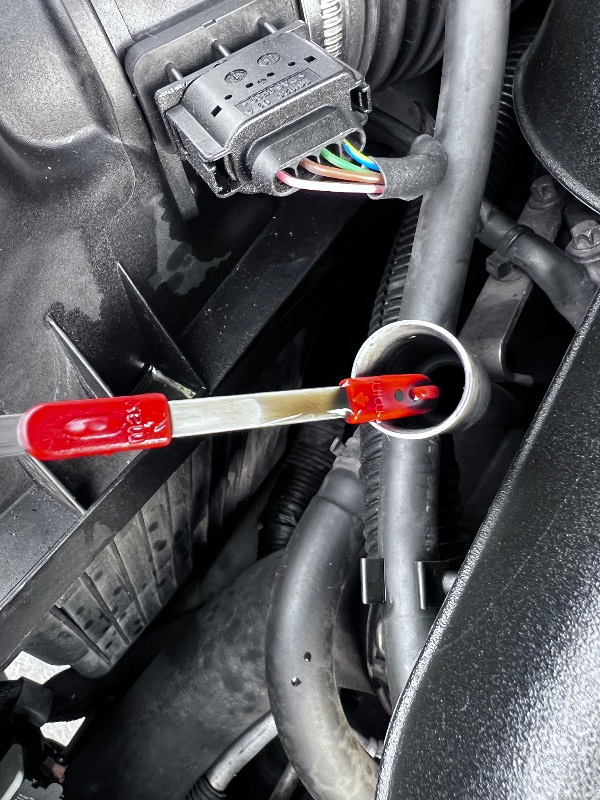

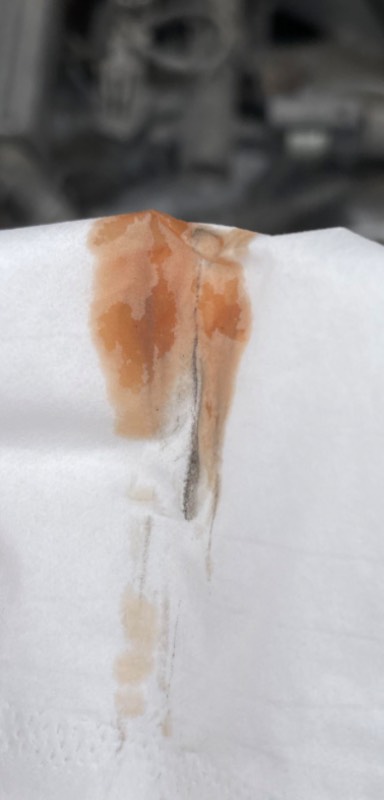

| Transmission oil condition | Fluid was dark red colour depicting acceptable fluid condition |

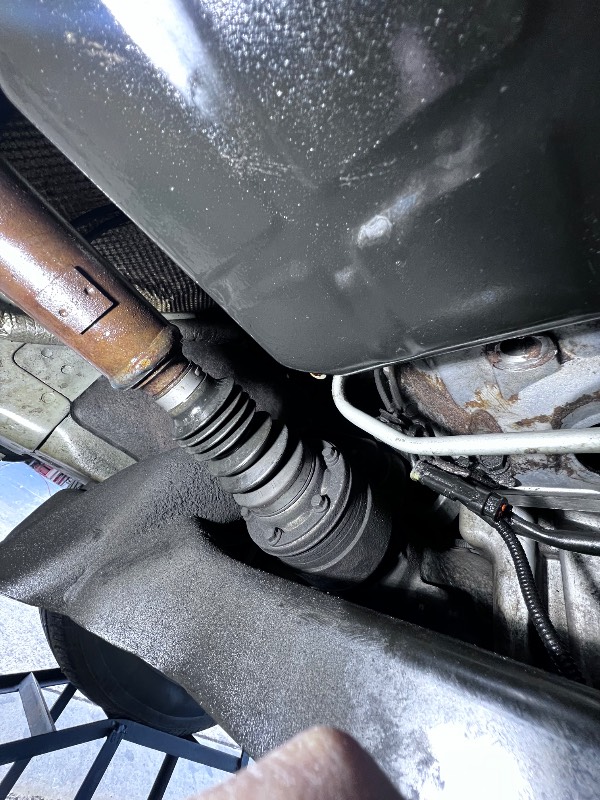

| Driveshaft and boots condition | |

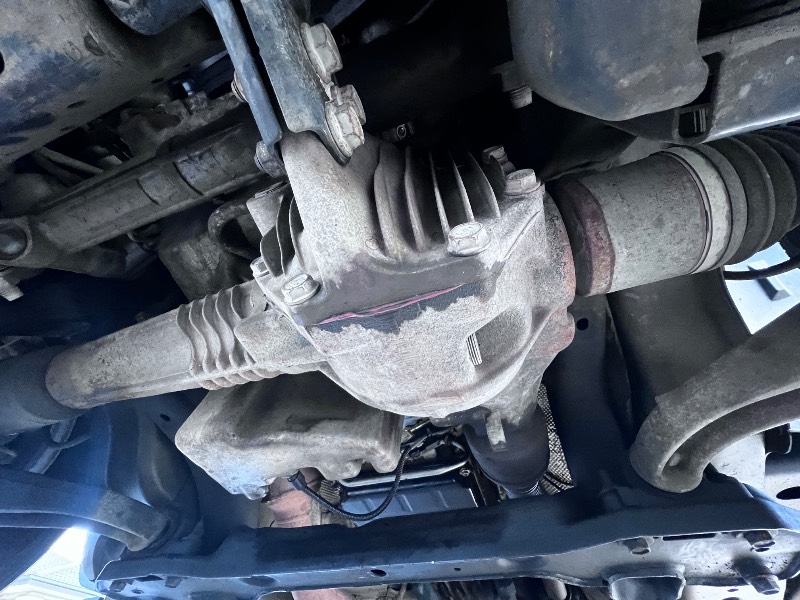

| Front differential / Transfer case | Oil residue on front differential, sign of old leaking residue, however consistent with vehicle’s age. |

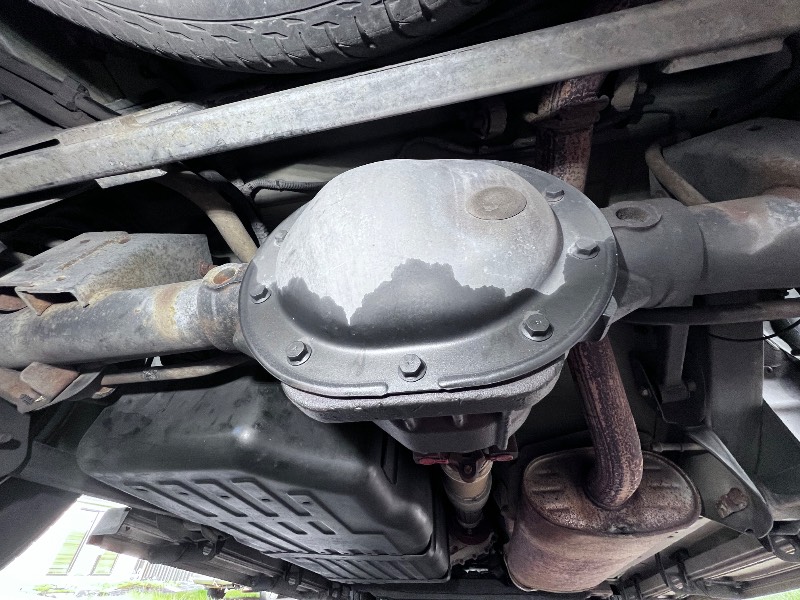

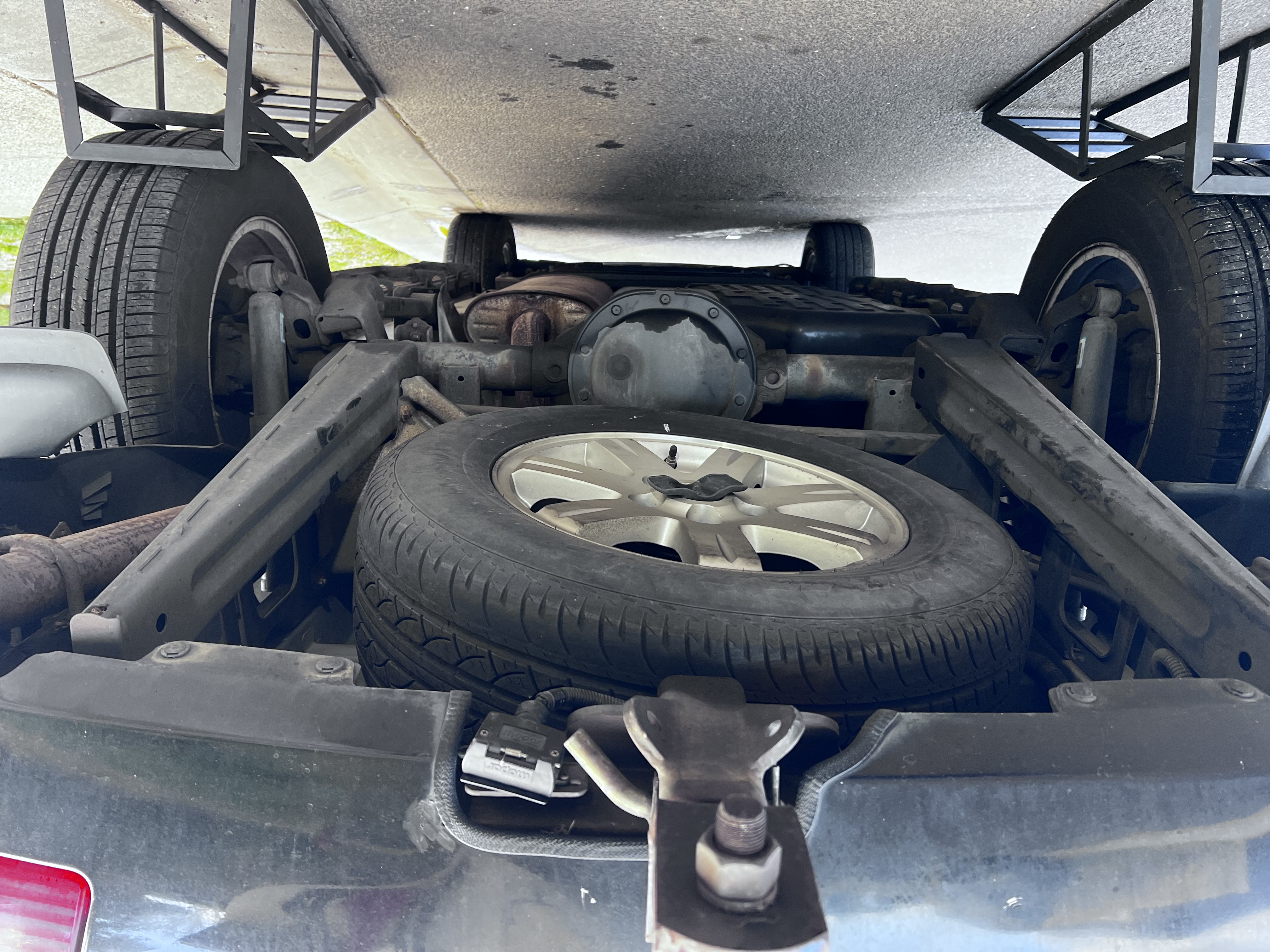

| Rear differential & Tail Shaft | Oil residue on rear differential, sign of old leaking residue, however consistent with vehicle’s age. |

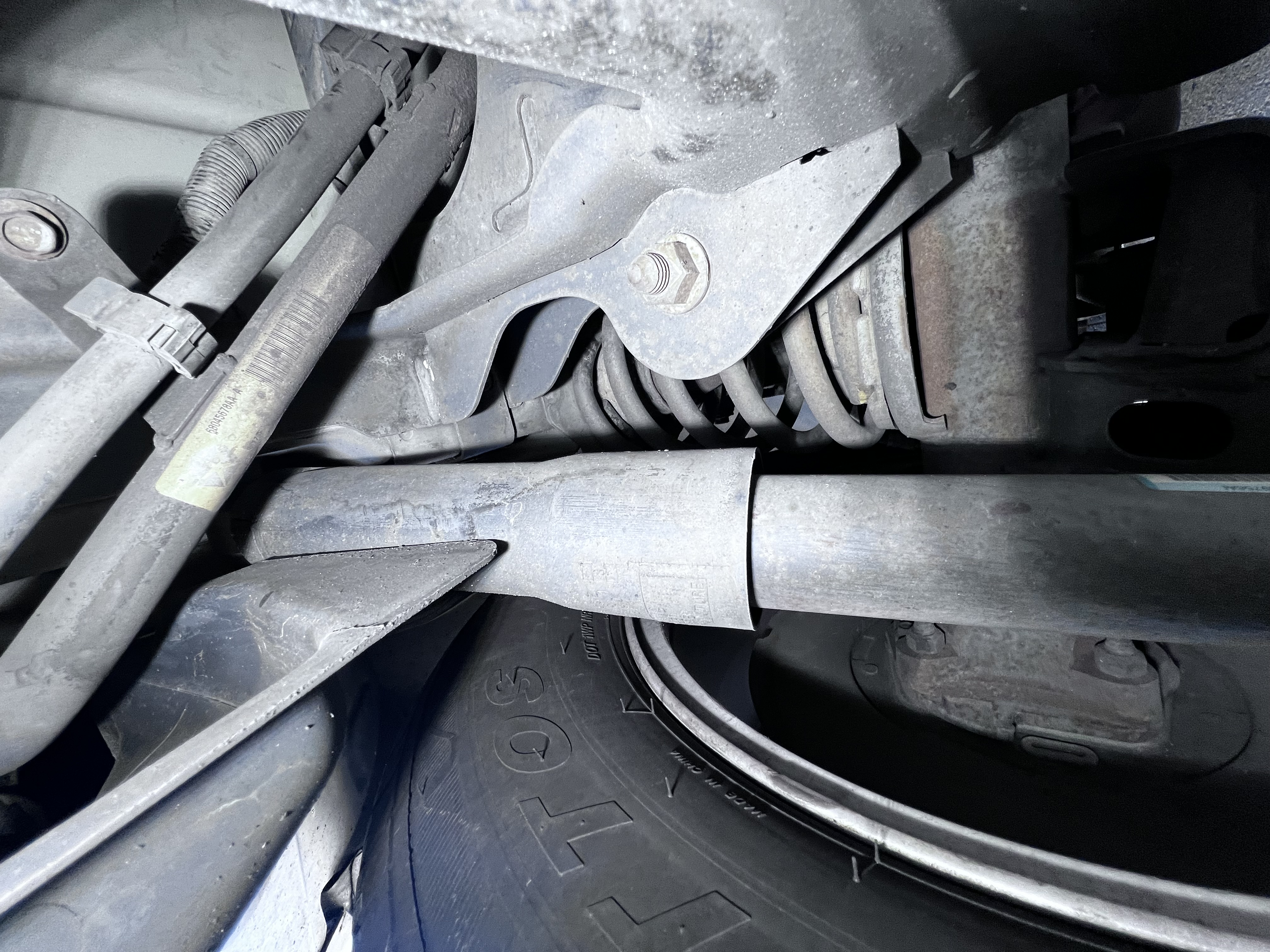

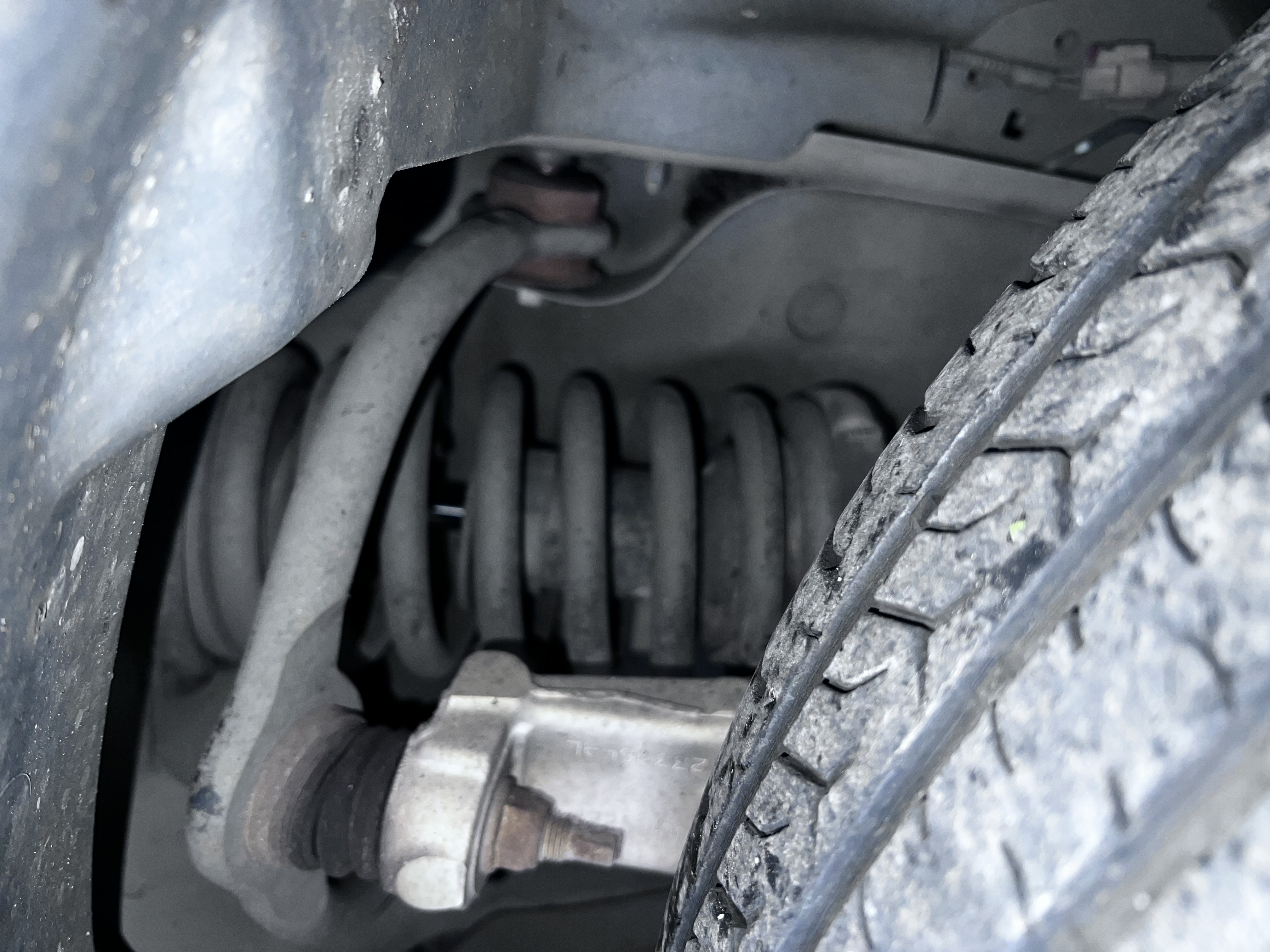

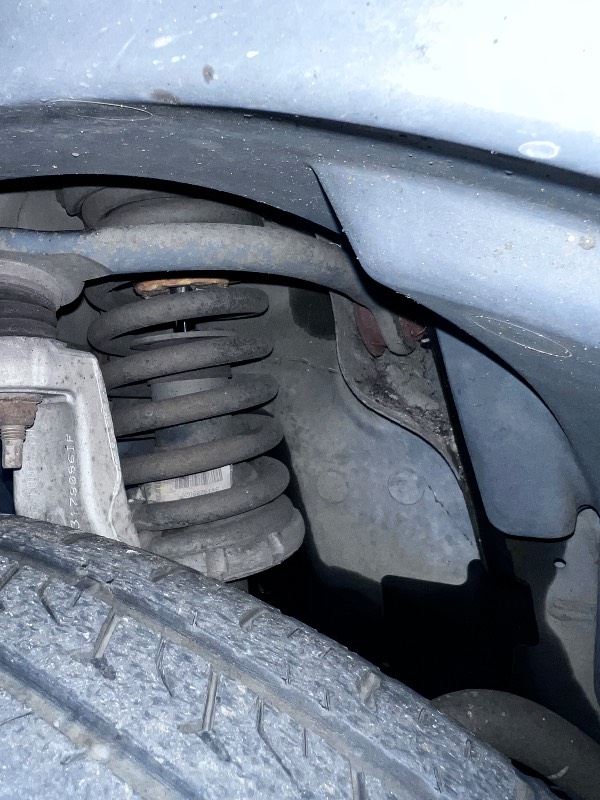

| Leaf / Coil springs | |

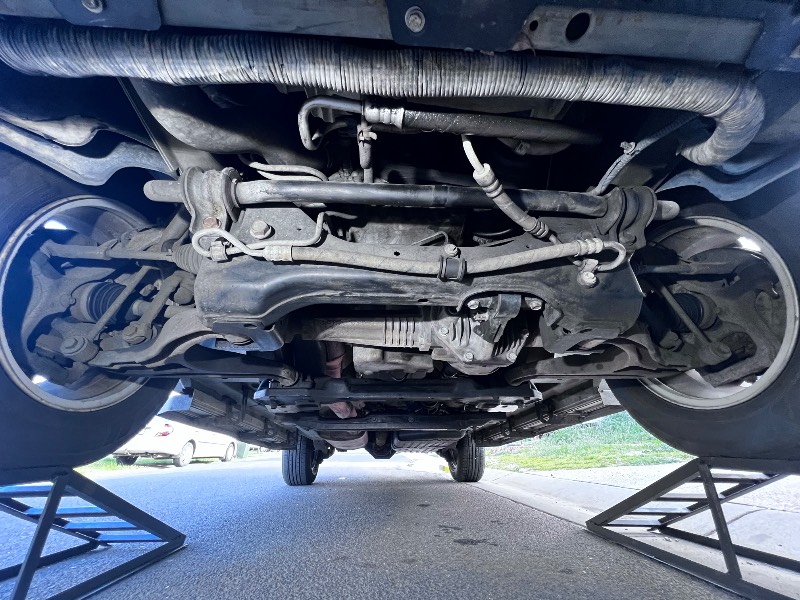

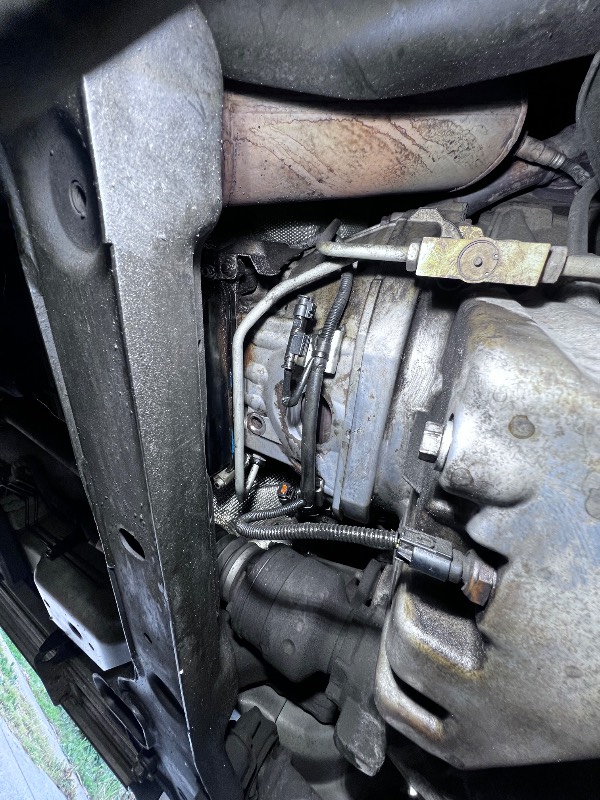

| Drive line images |
| Part | Comments |
|---|---|

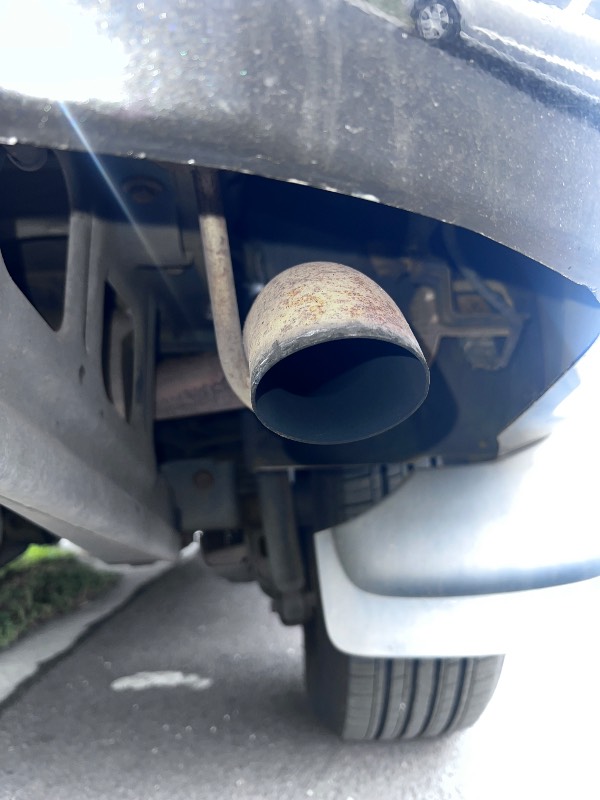

| Exhaust | |

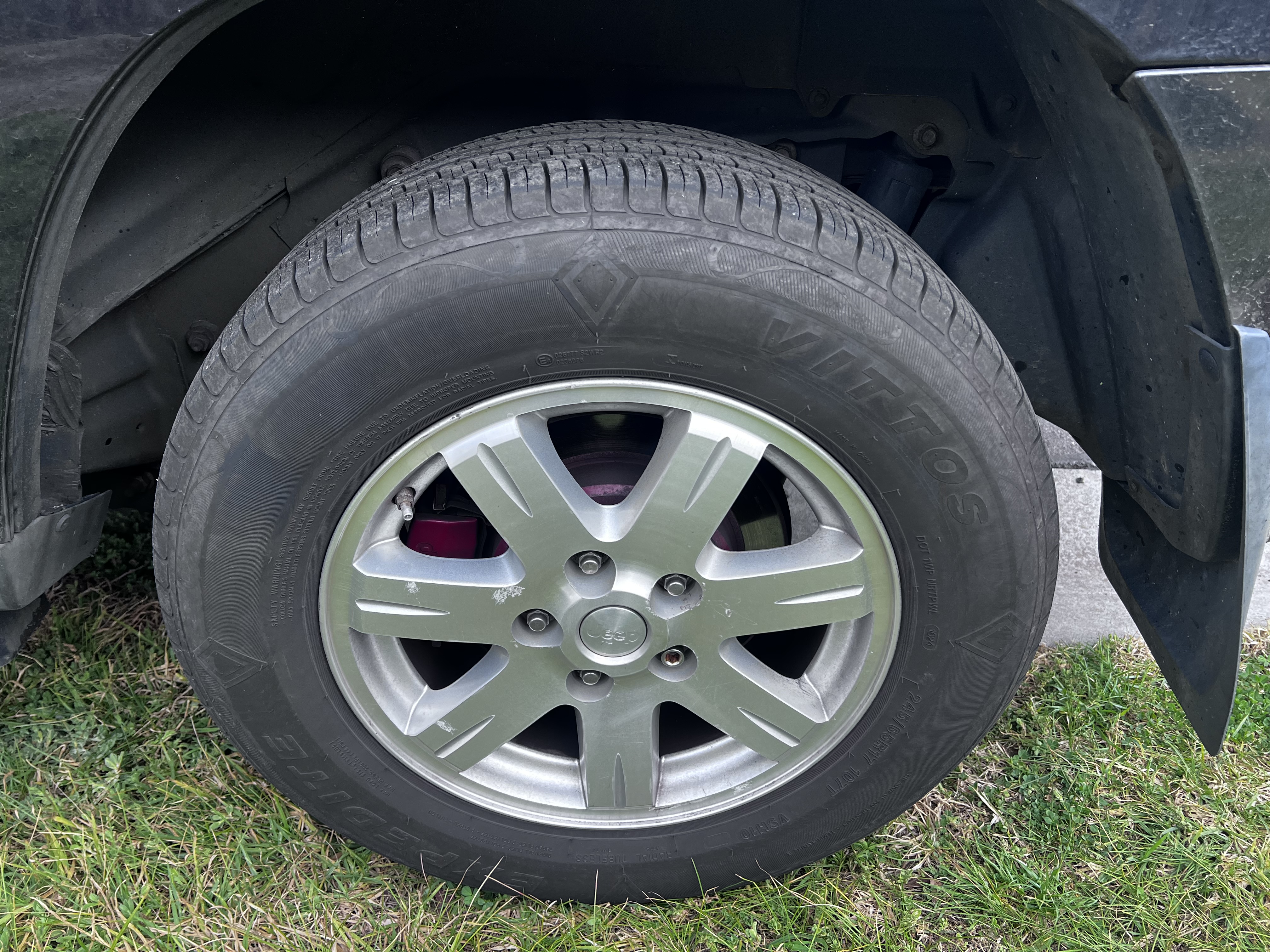

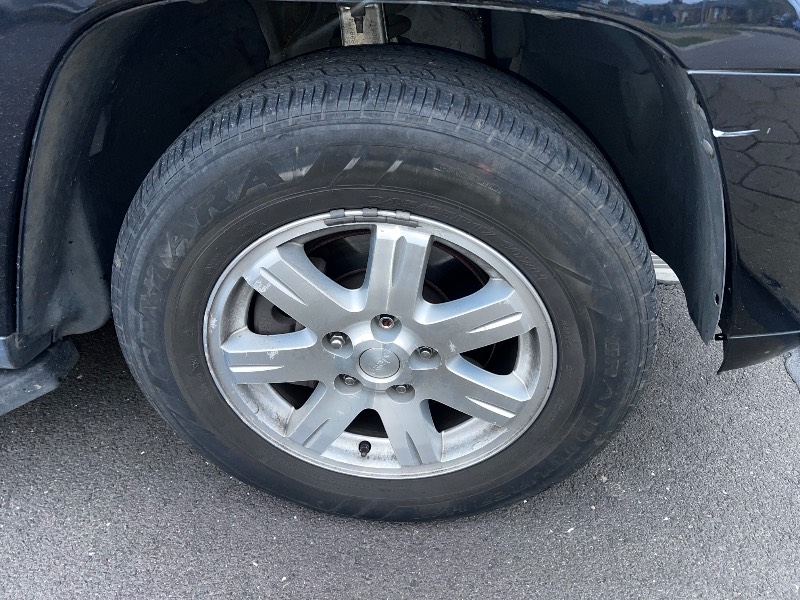

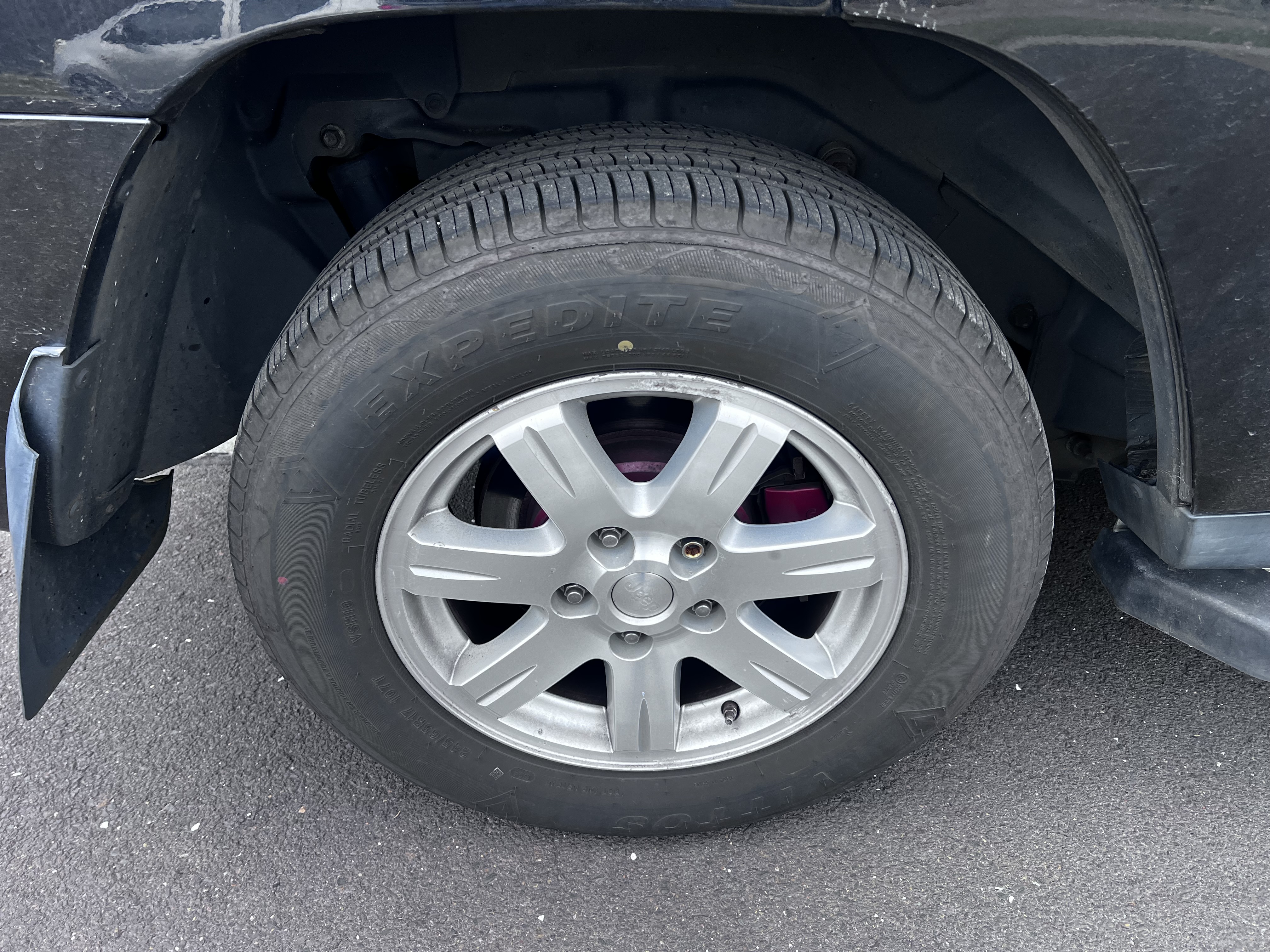

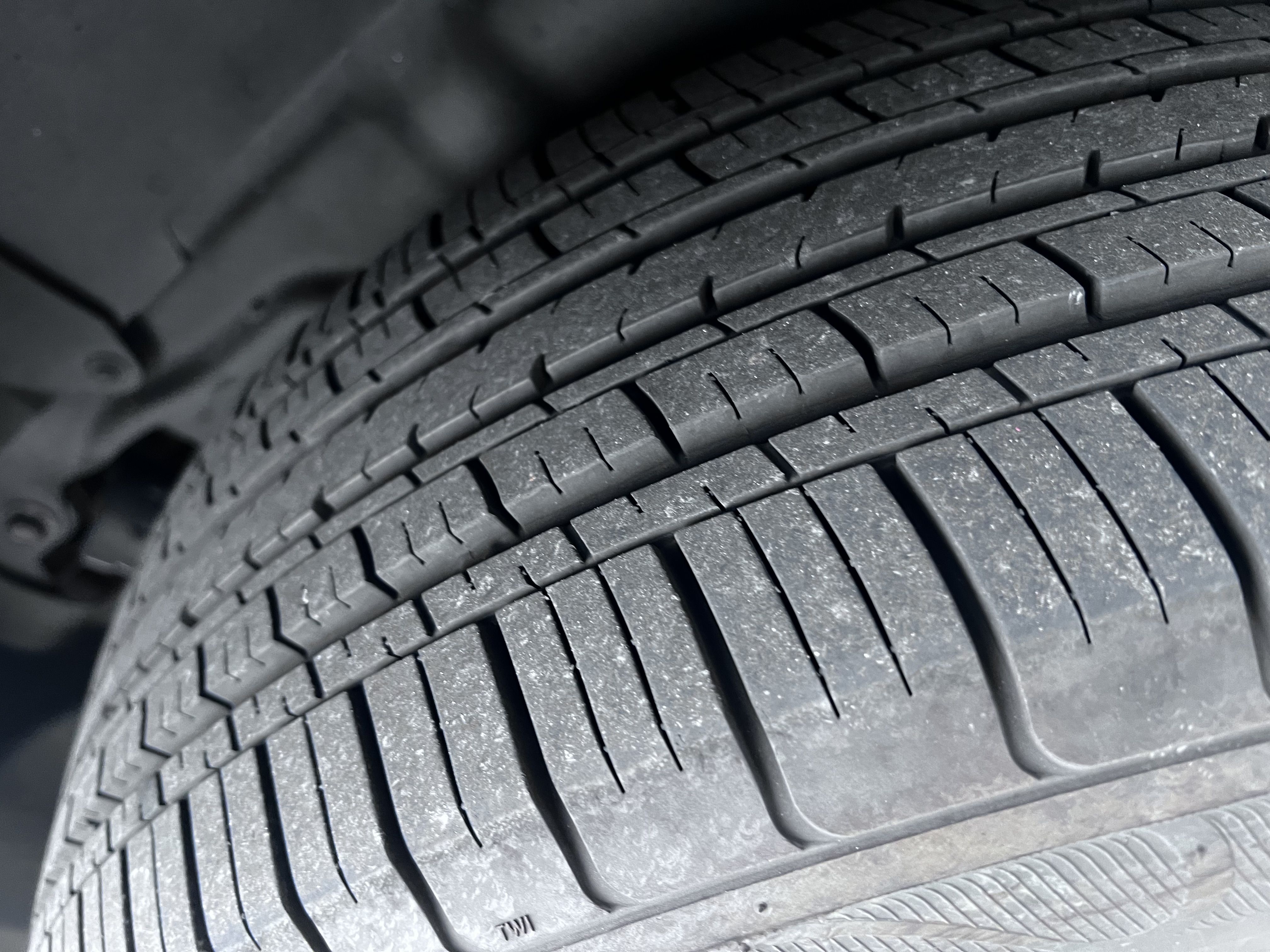

| Tyres condition | Rear tyres in good condition. Front tyres needs replacement |
| Brake disc condition | |
| Front brake pads | |
| Rear brake pads |
|

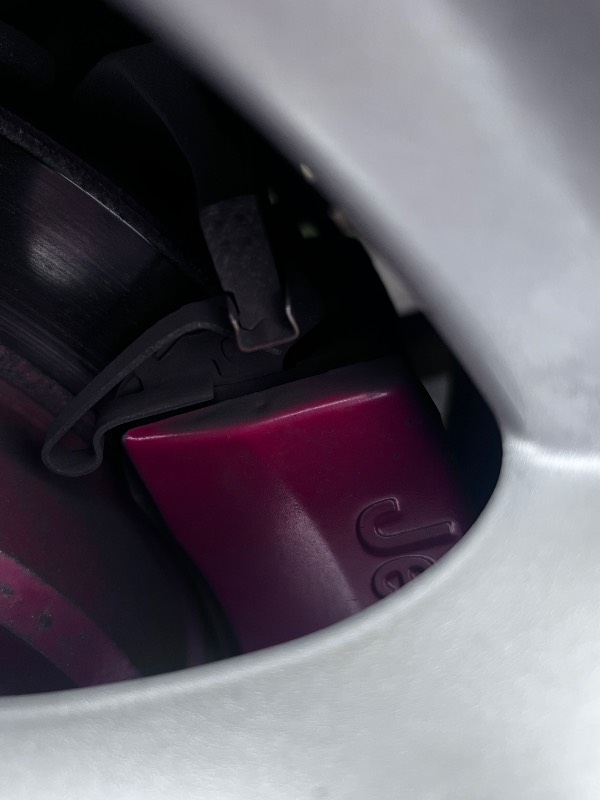

| Brake master, calliper and hoses | |
| Sway bar links and torsion bar | |
| Steering rack / tie rod ends / Ball joints | |

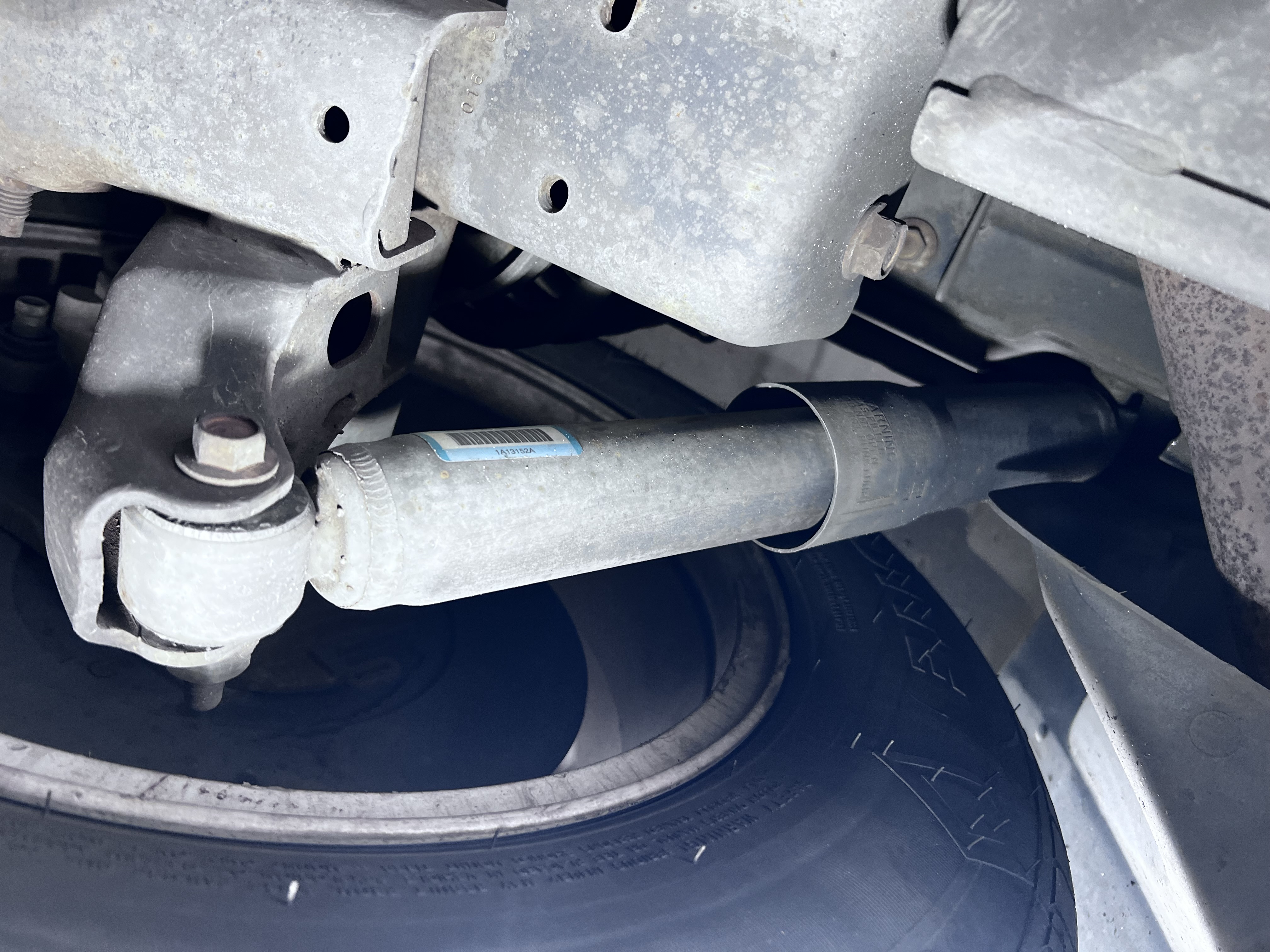

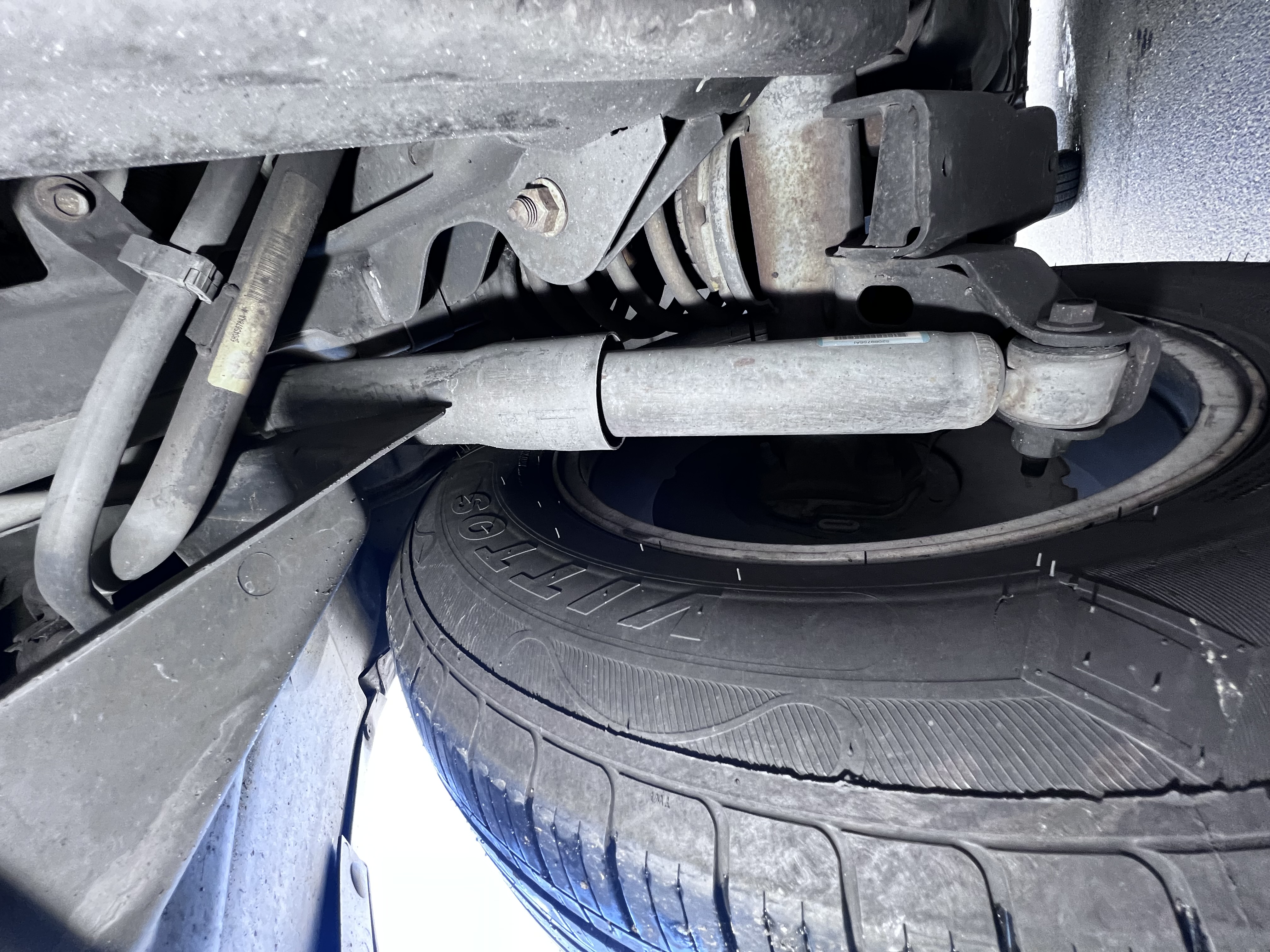

| Shock absorber / Struts | |
| Hub assembly / Wheel bearings |
|

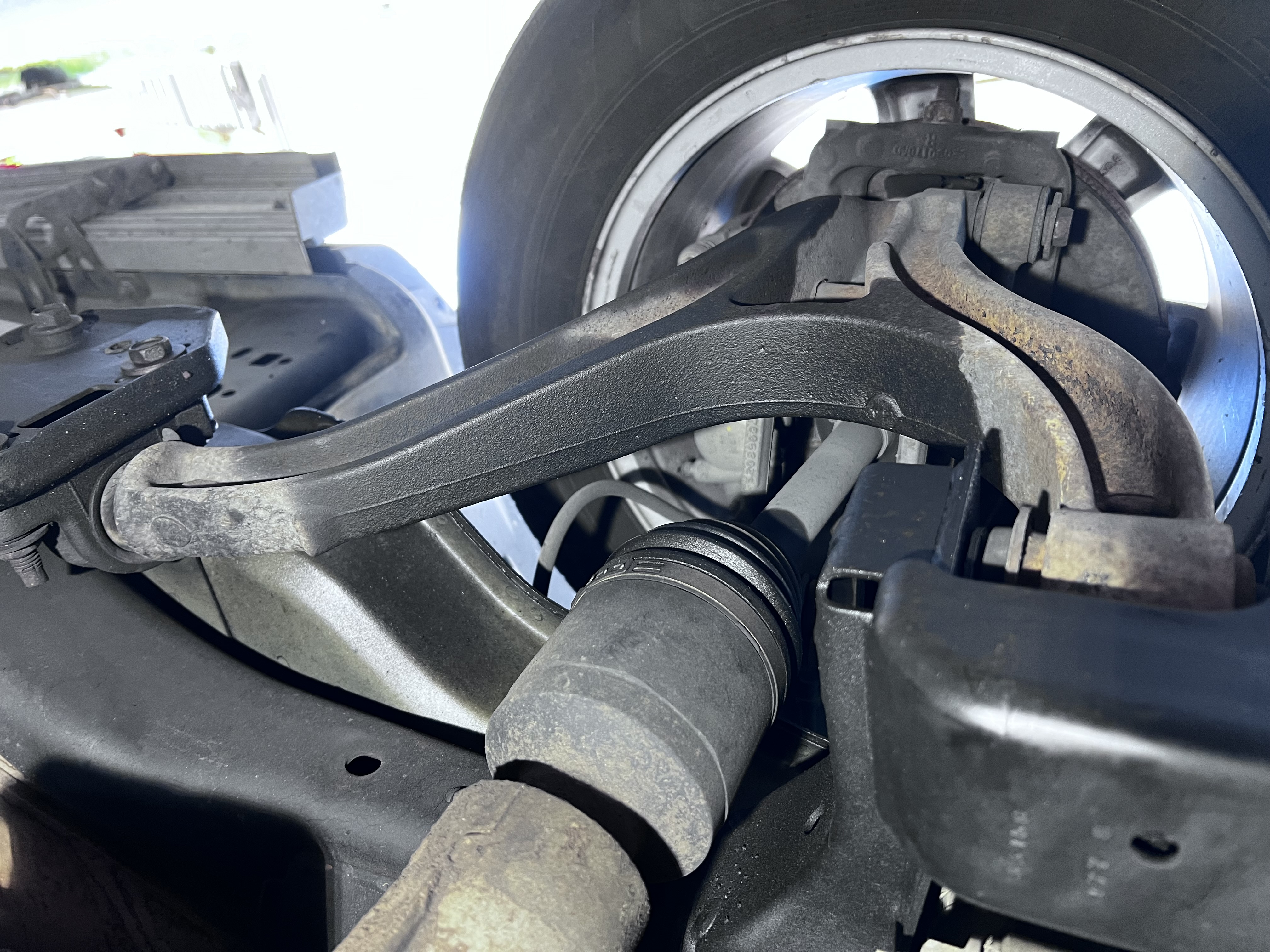

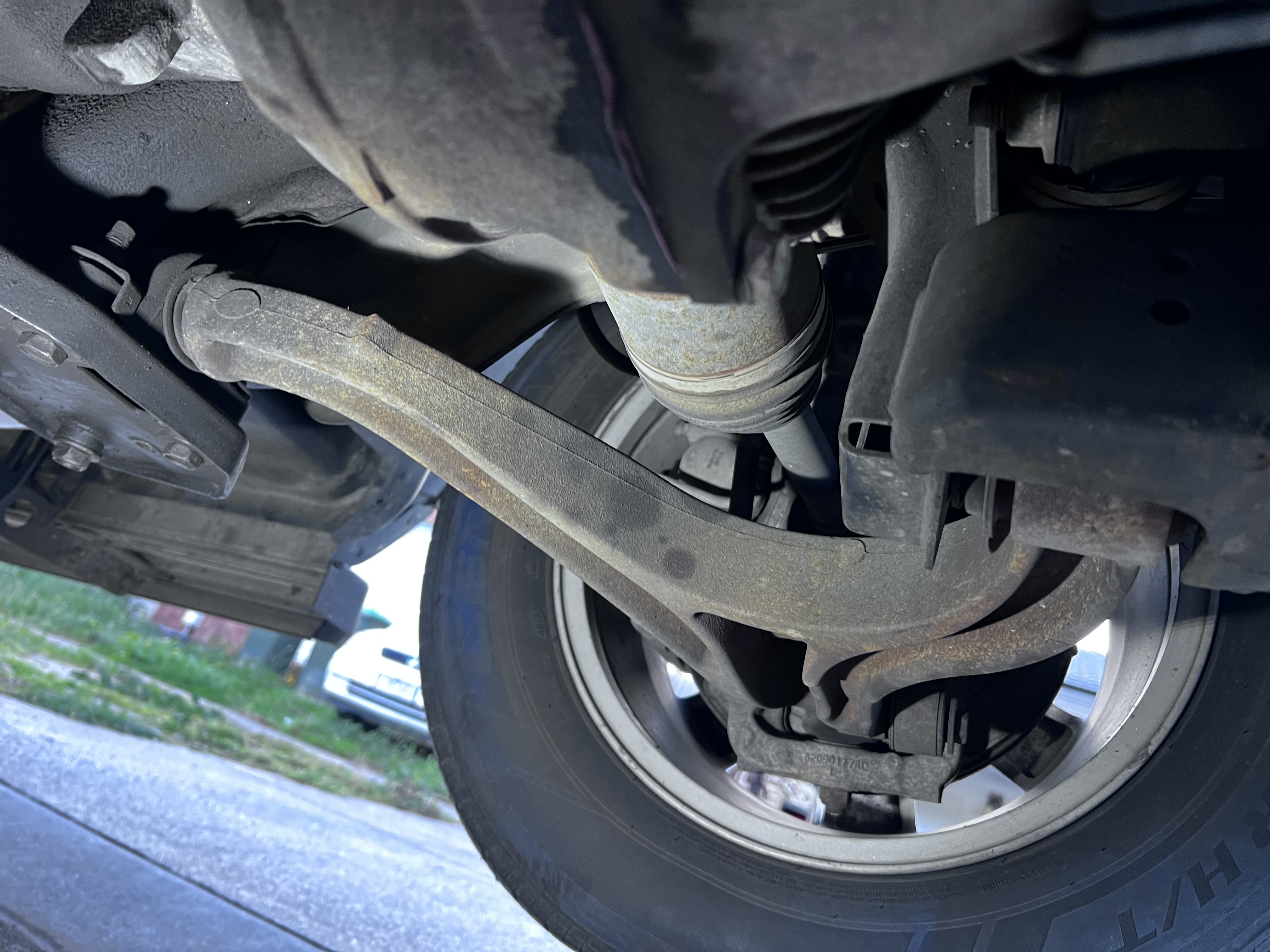

| Suspension bushes / Control Arm bushes |
|
| Part | Comments |
|---|---|
| Windscreen, bonnet and bonnet struts | Minor damage on windscreen. It will need to be repaired |
| Park / low & high beam / reverse / brake / repeater / fold lenses and globes |
|

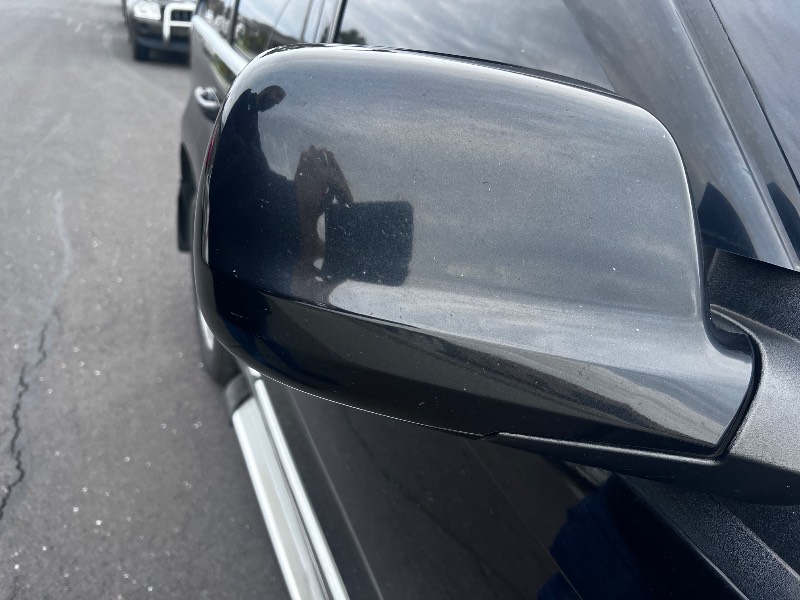

| Side mirrors | |

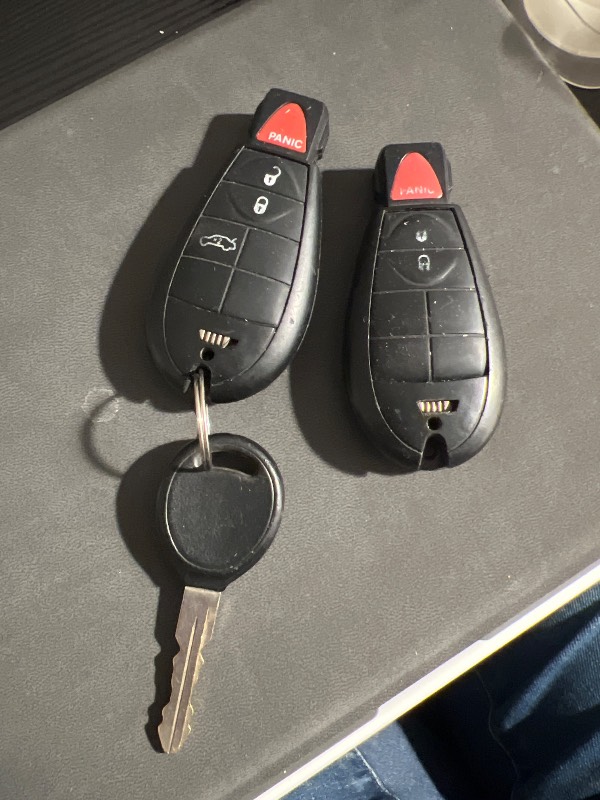

| Door lock and keys | Vehicle comes with two keys |
| Glass / trim / weather seals / moulds | |

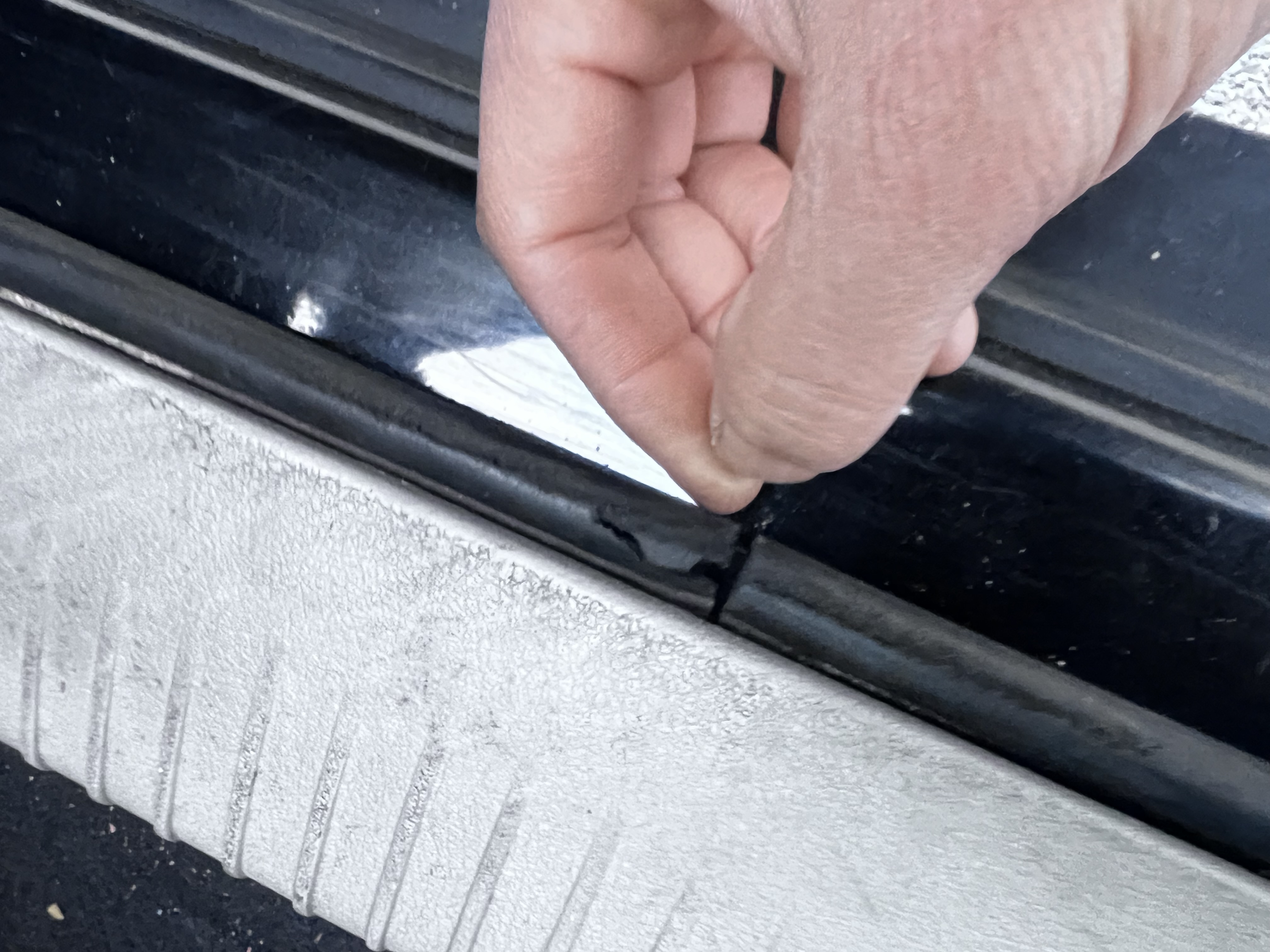

| Doors / Door seals | Tiny cut on driver side seal
|
| Sunroof / Aerial / Convertible | |

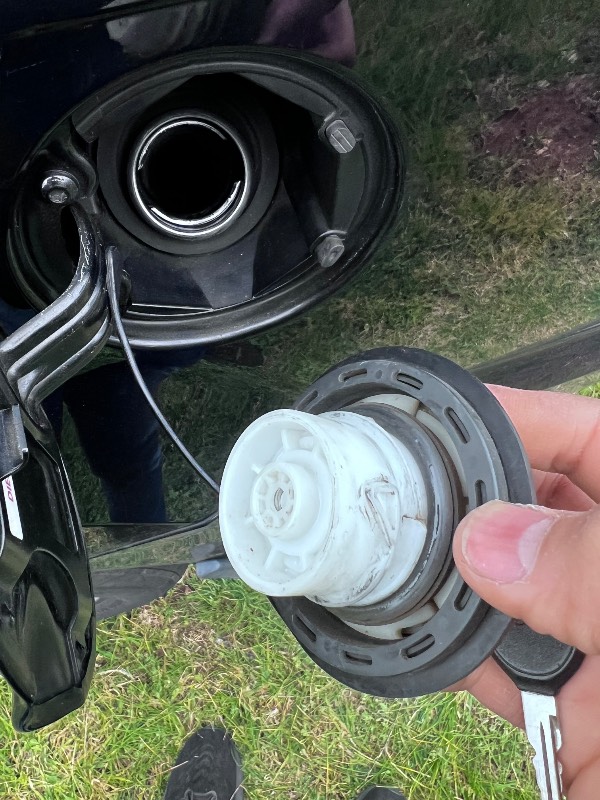

| Fuel cap | |

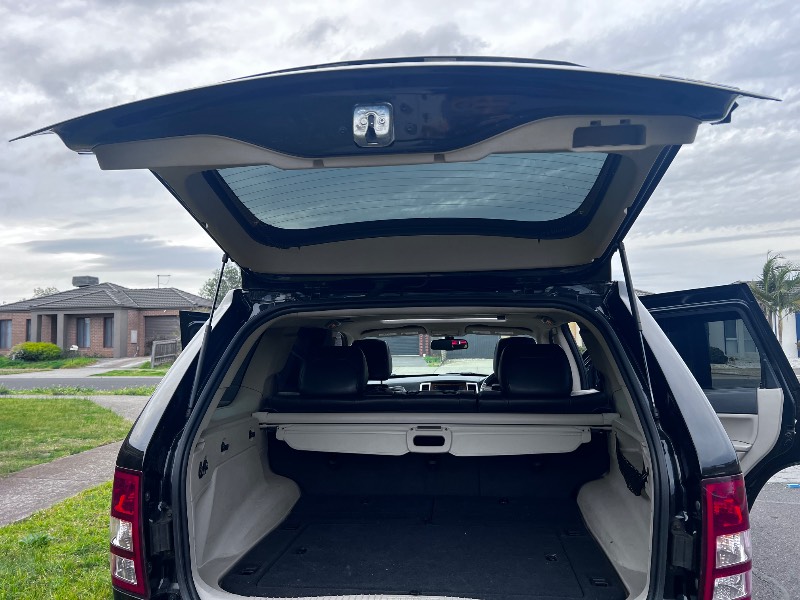

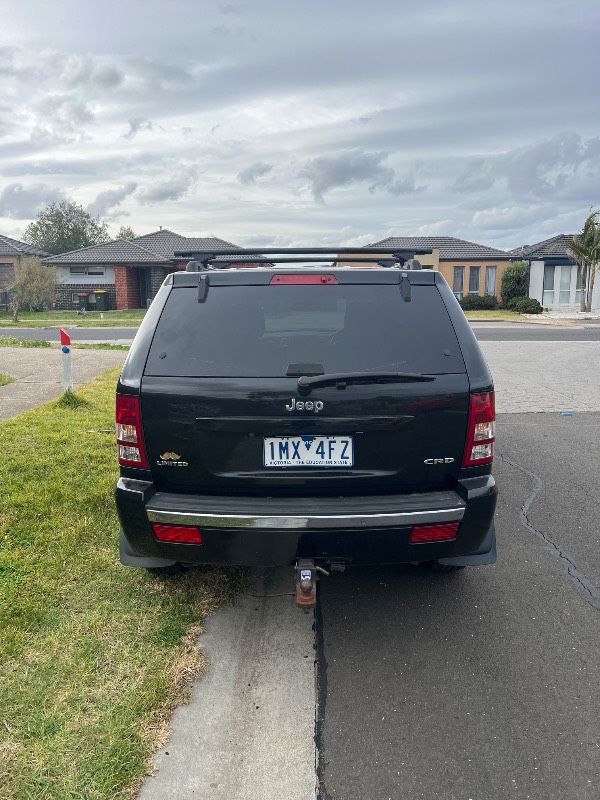

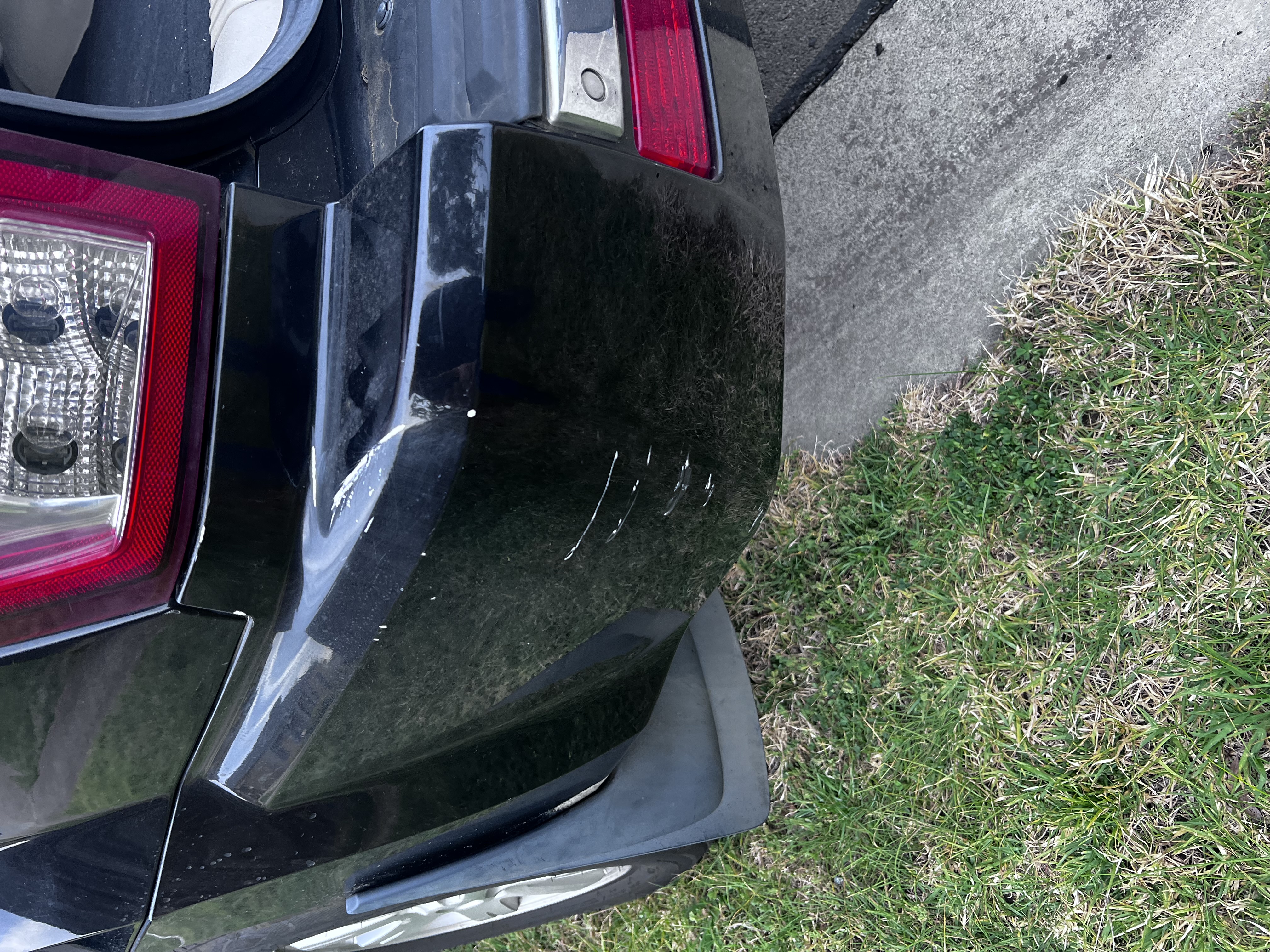

| Boot / tailgate struts / Rear bumper | Rear bumper has damage on the passenger side, sign of minor collision |

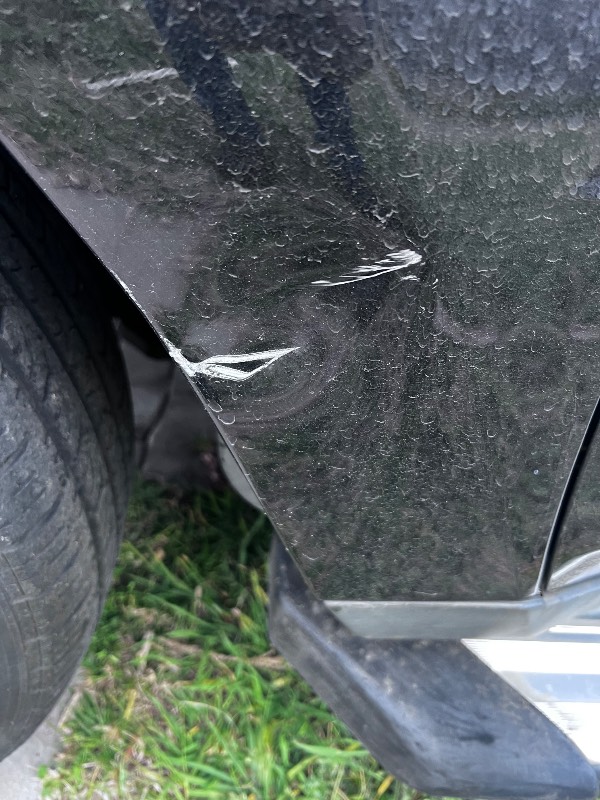

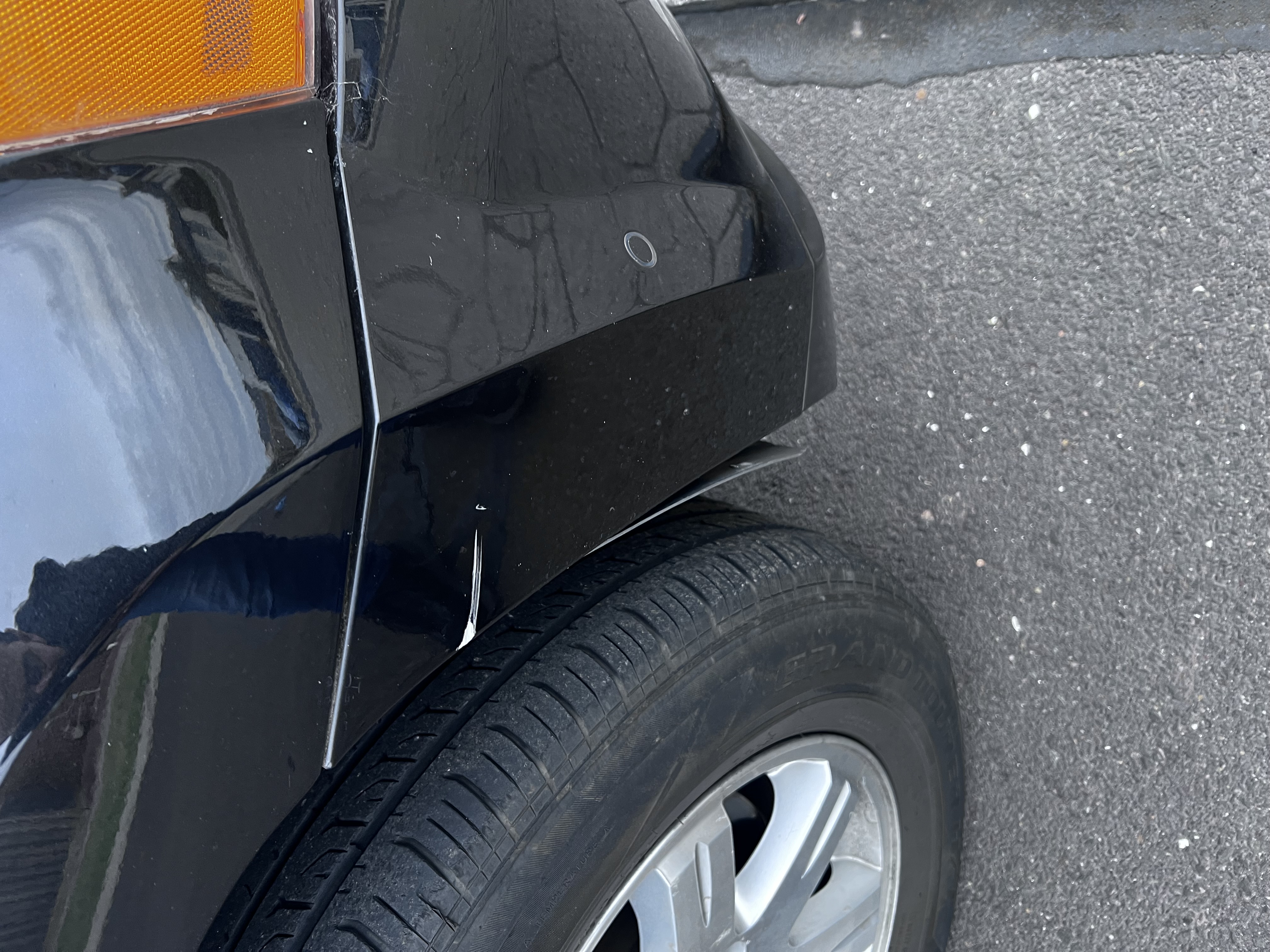

| Body Repairs /Panels damage | Body is in fair condition minor dints on passenger side front panel and driver side front bumper and passenger side rear bumper |

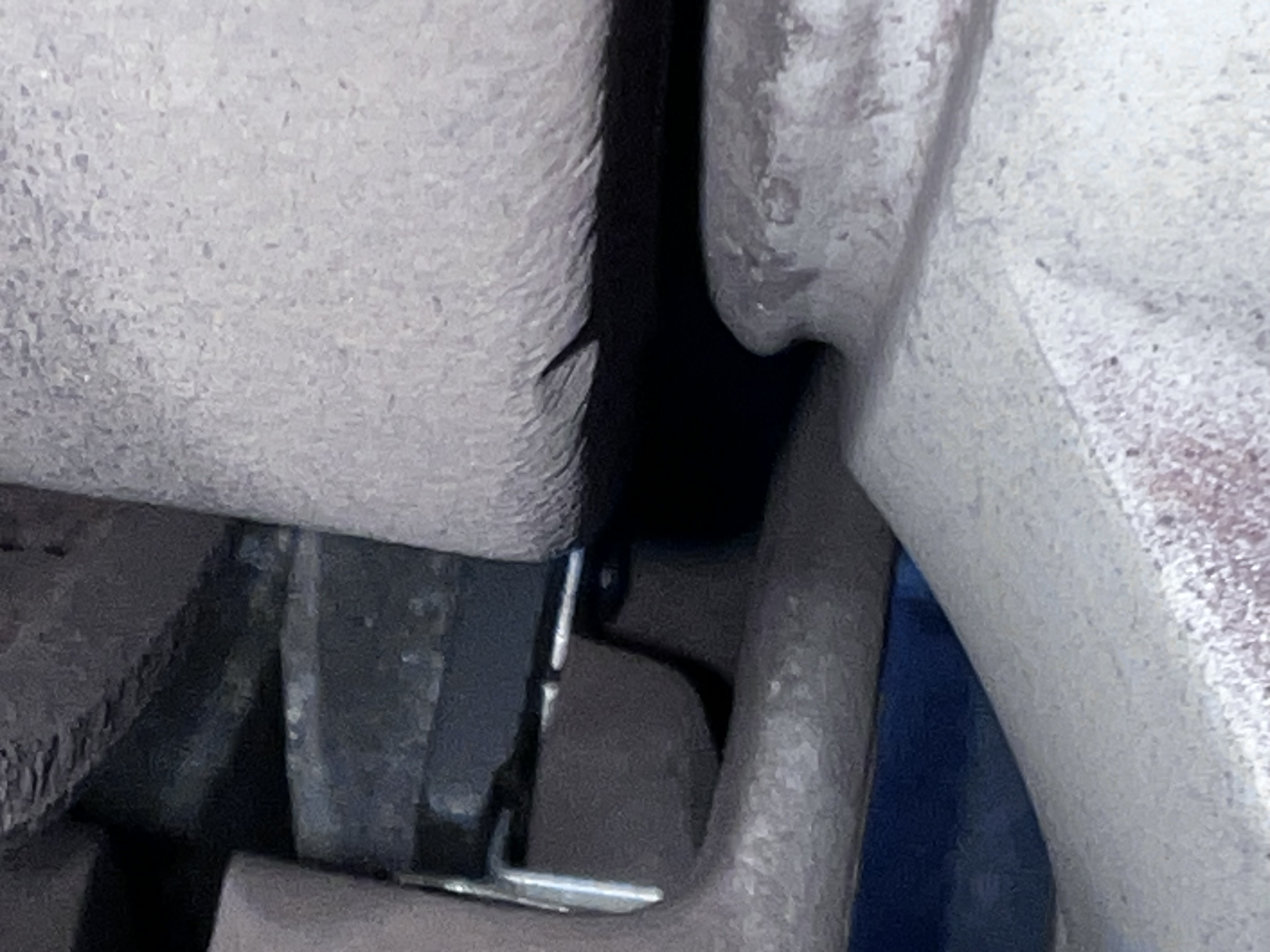

| Rust | Minor rust on passenger seat rear bolts |
| Part | Comments |
|---|---|

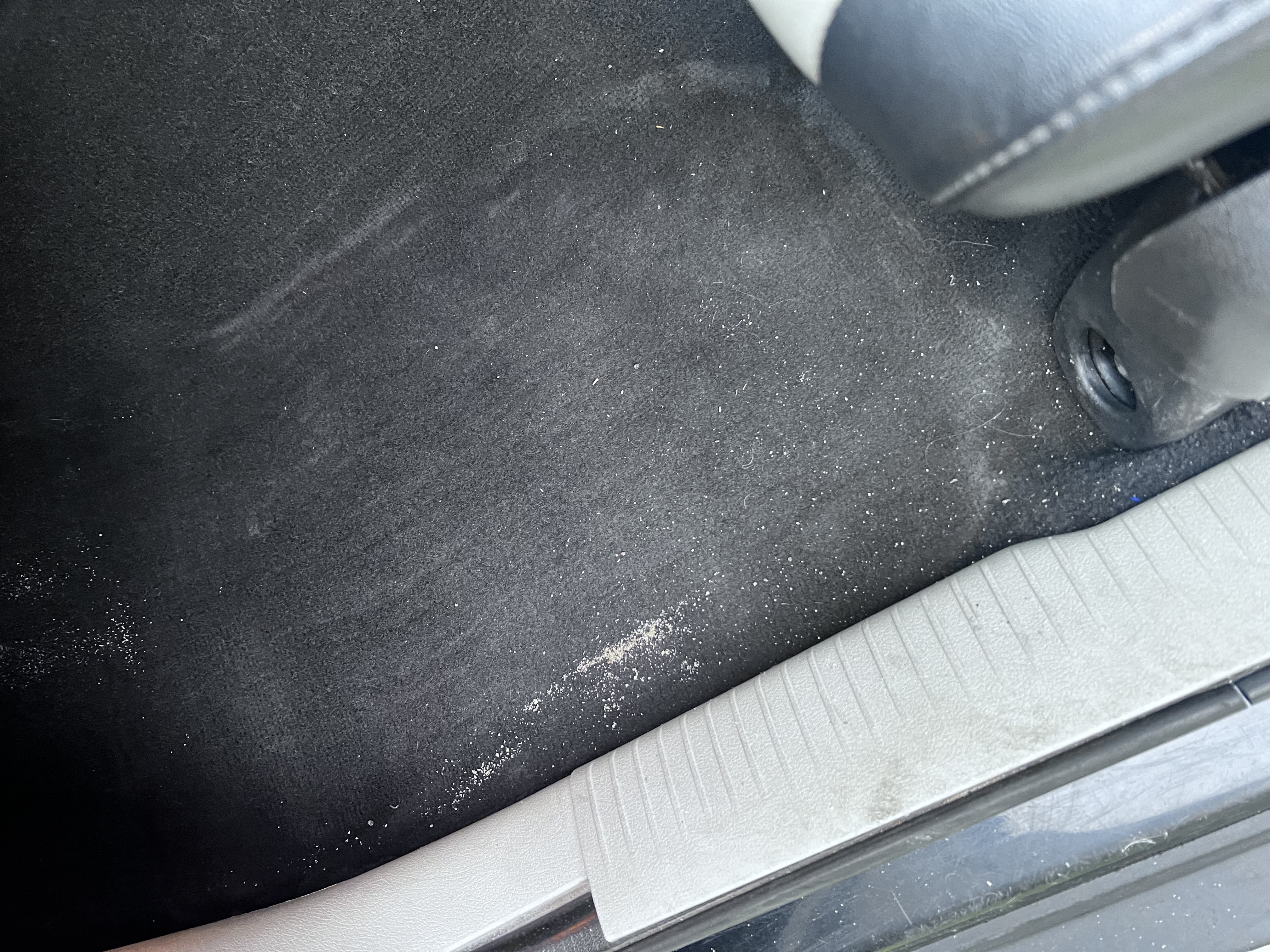

| Carpet condition / Door mats / pedals and dashboard | In good condition consistent with vehicle’s age make and model |

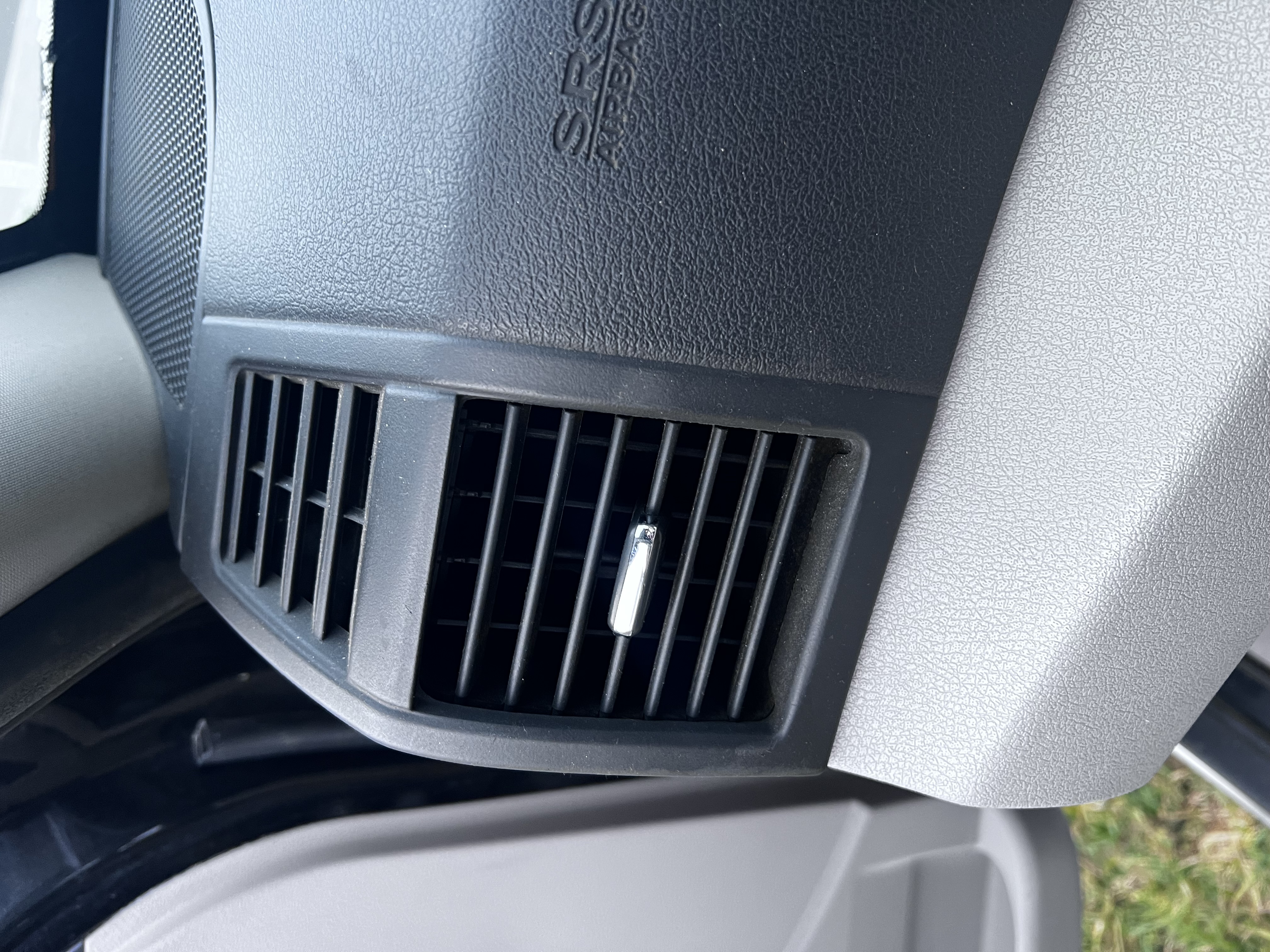

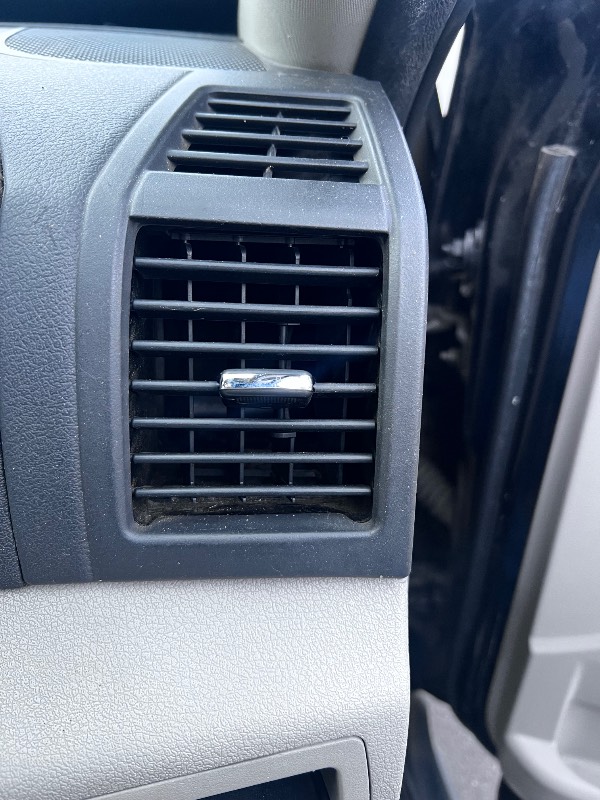

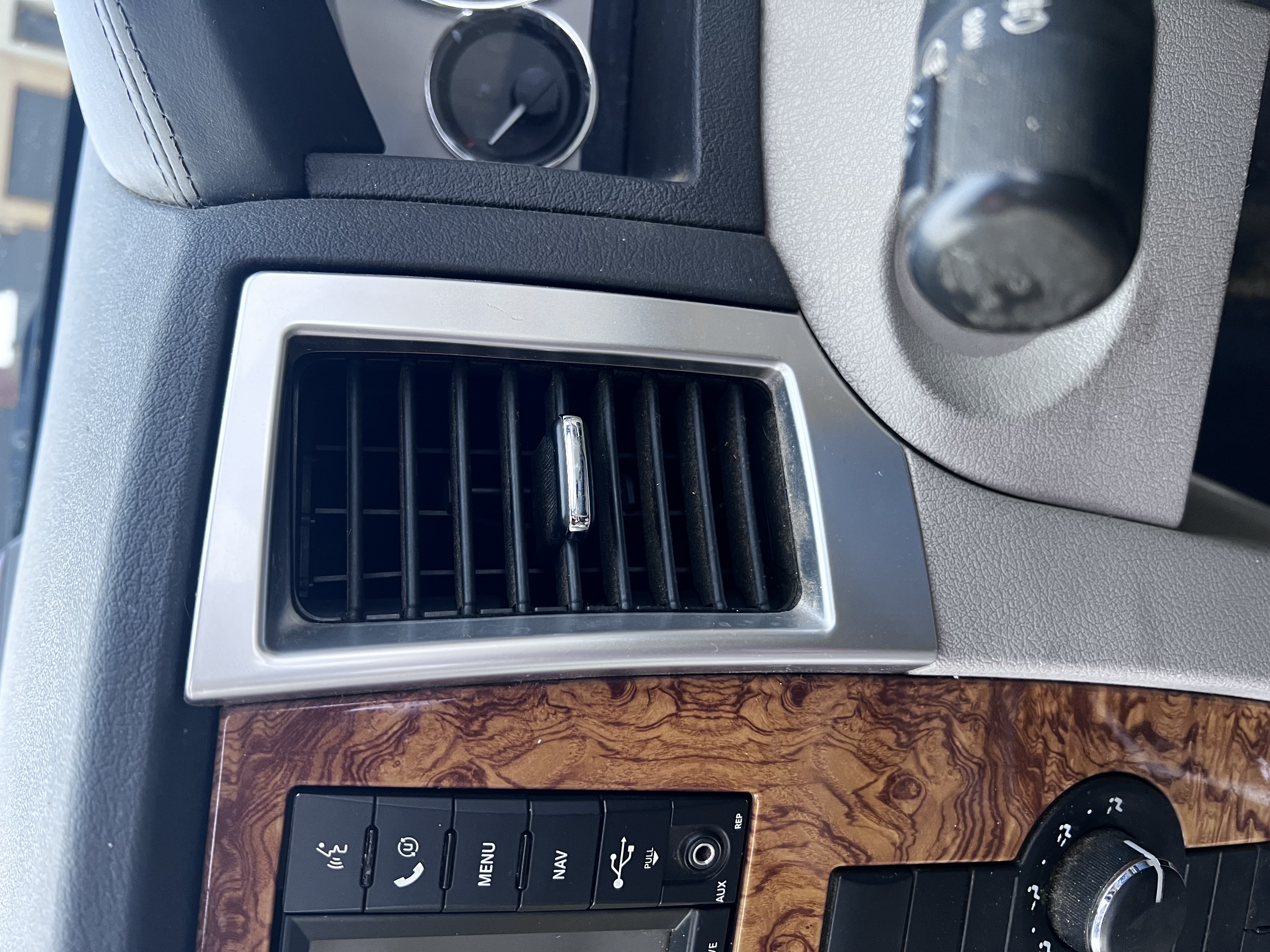

| Glove box / air vents | Rear driver right air vent missing adjustor |
| Roof lining / Sun roof |
|

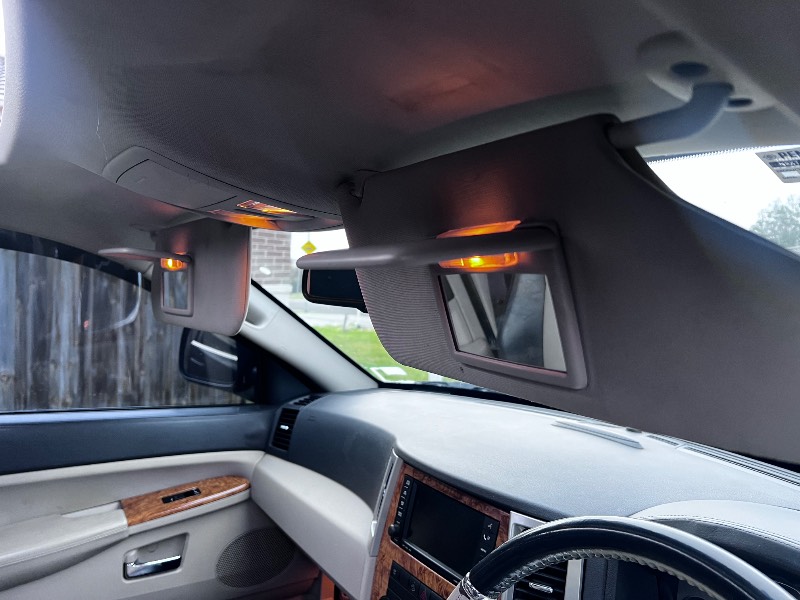

| Sun visors / interior light/ Rear view mirror | |
| Comb. Switch / hazard light switch |
|
| Windows Operation |
|
| Front and rear wiper inserts / Washers | Front wipers make noise whilst operating need new wipers |
| Heater operation |
|
| Air condition operation |
|

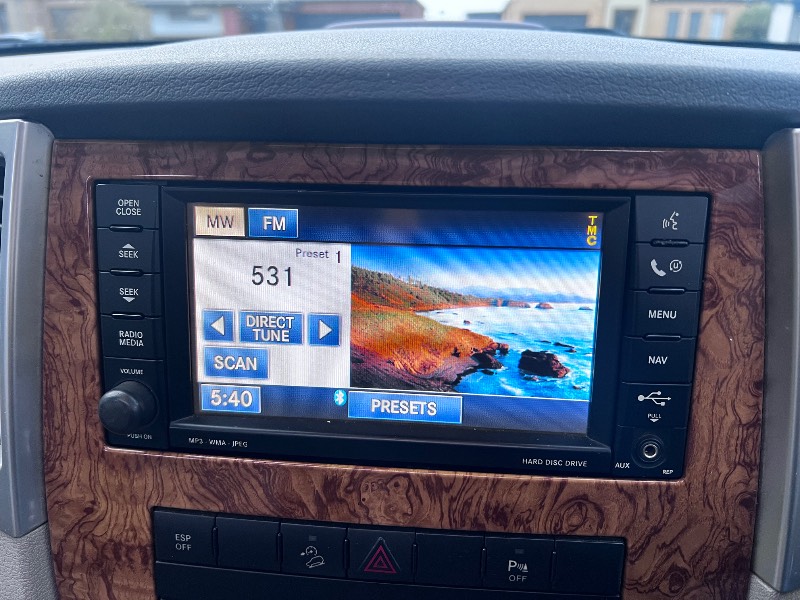

| Head unit / CD player / Radio / Navigation | |
| Central console | |
| Steering Wheel grip / Horn | |
| Park brake operation |
|
| Fuel gauges / temp gauges |
|

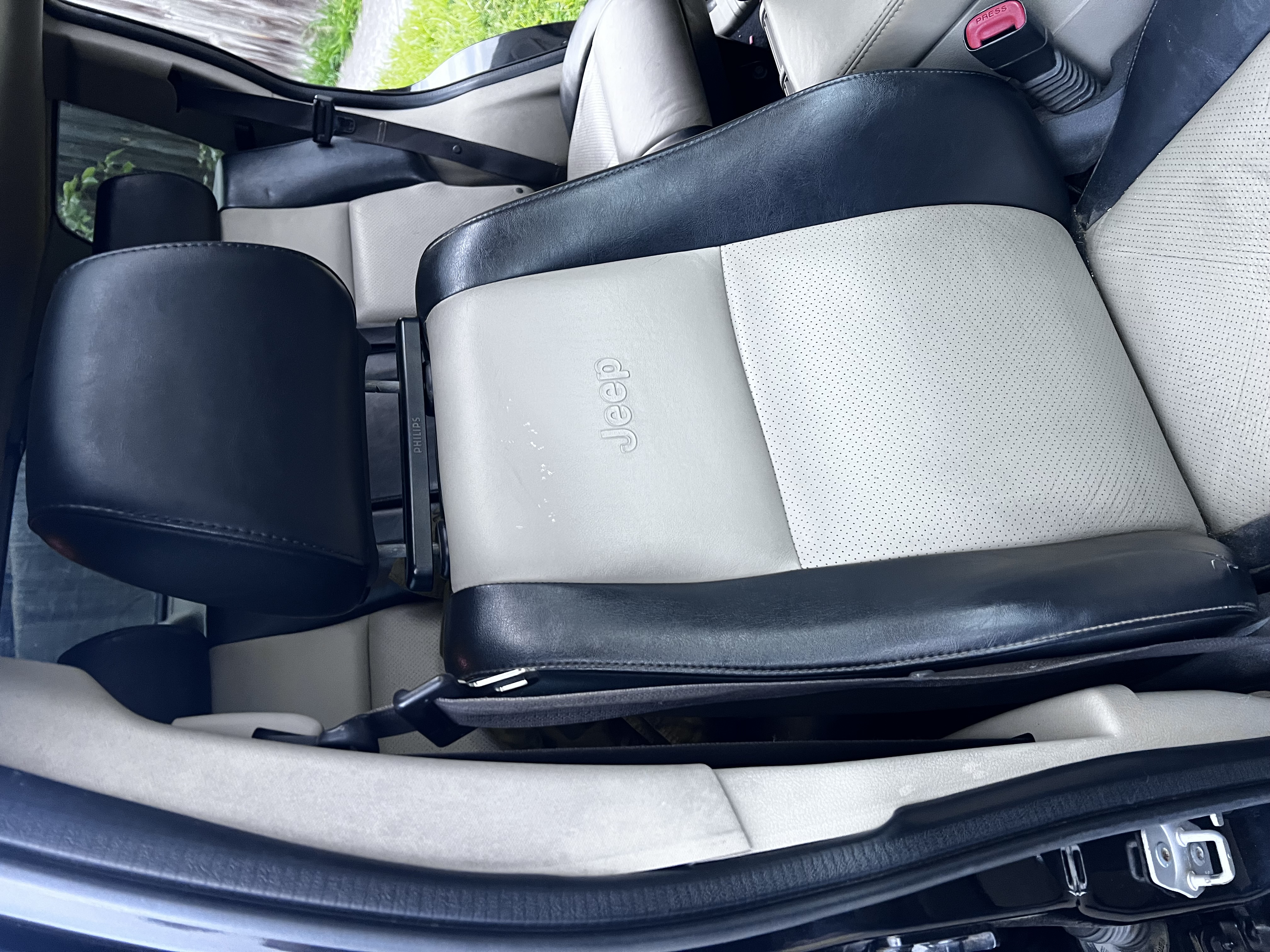

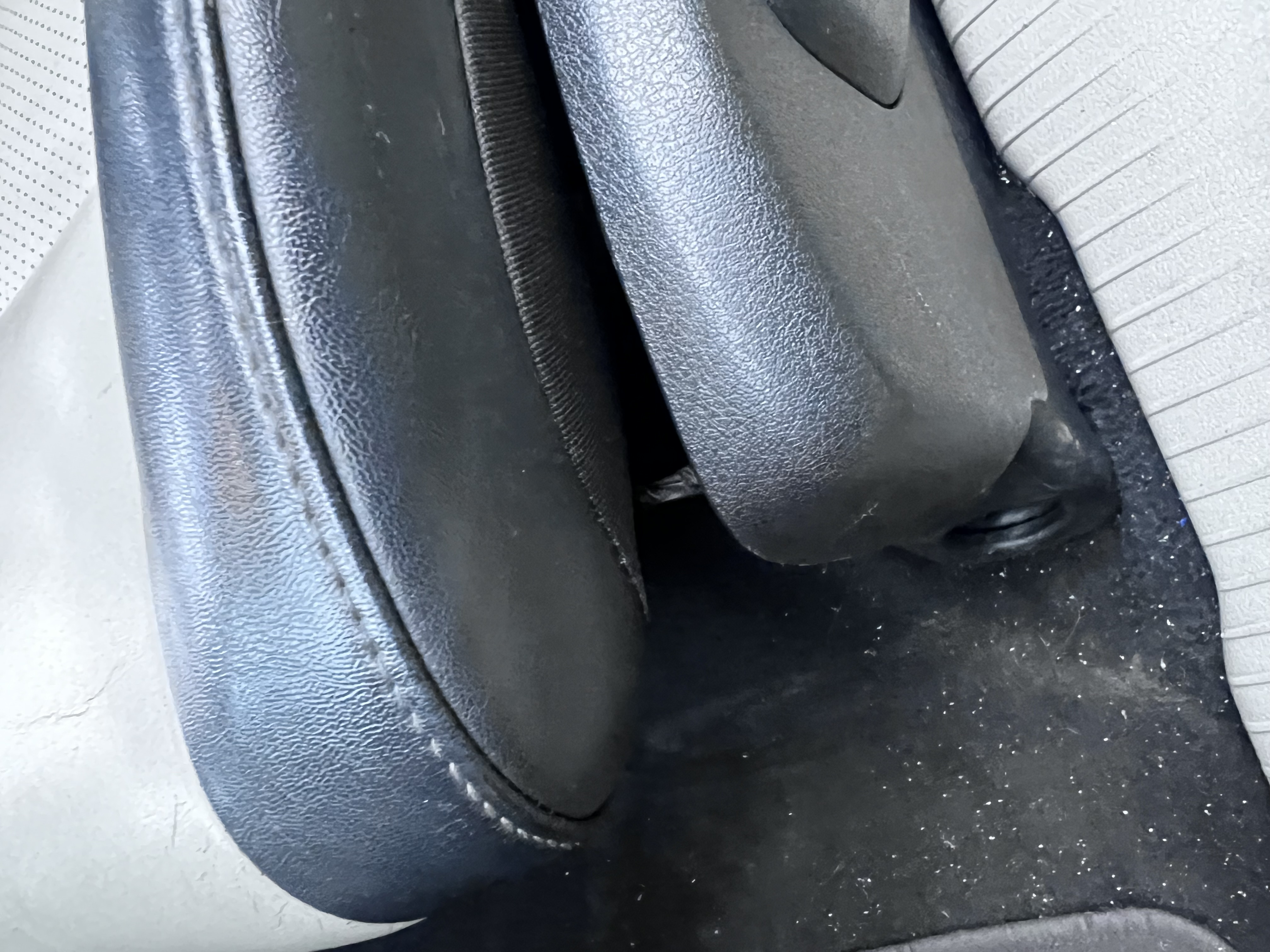

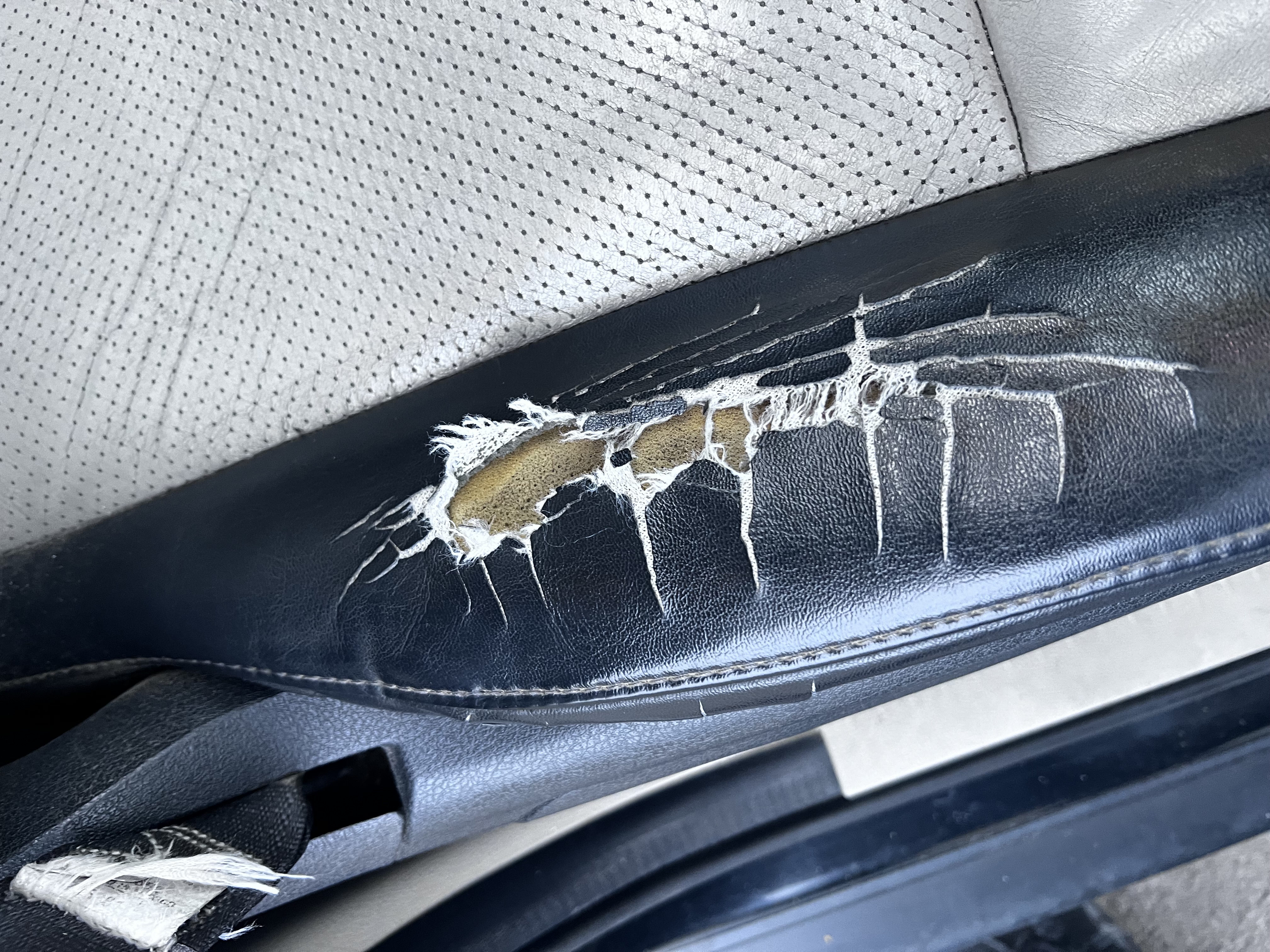

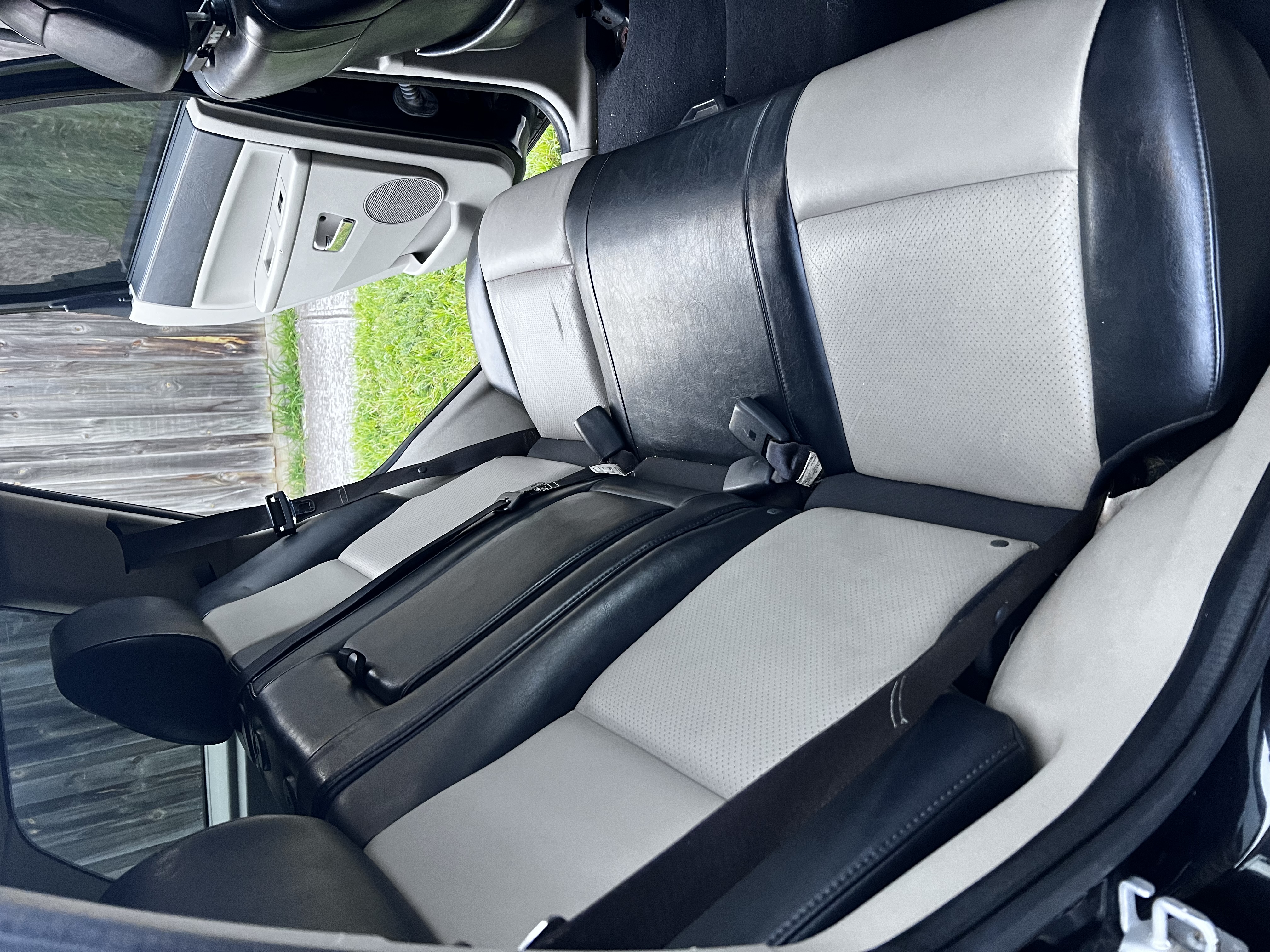

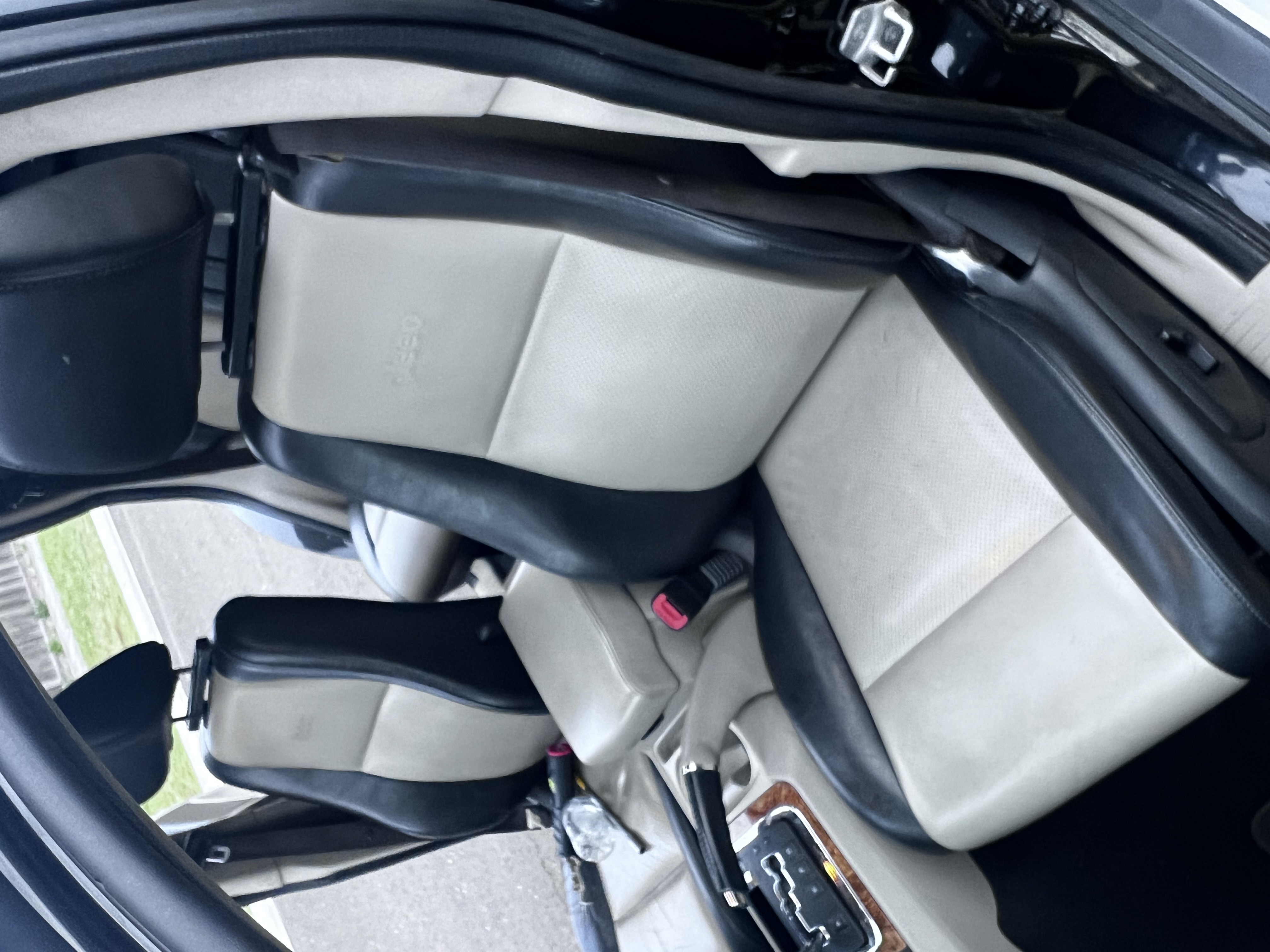

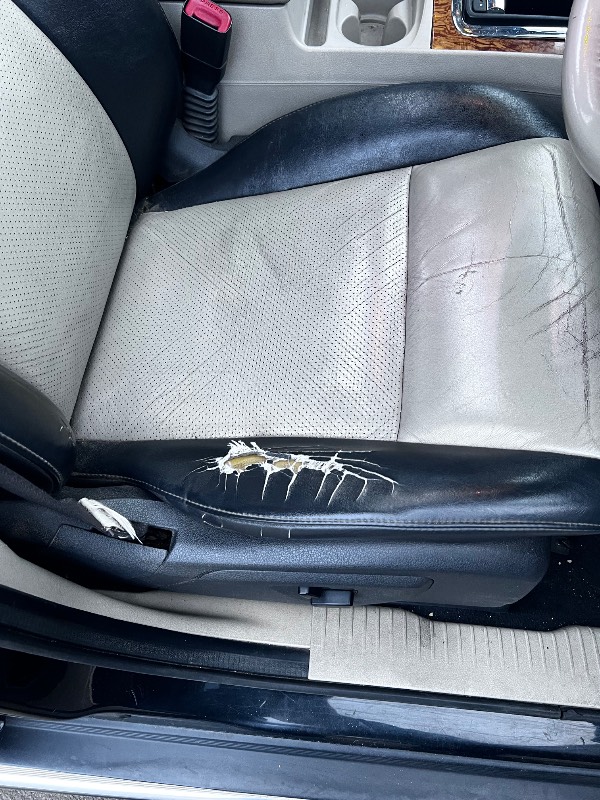

| Front and rear seats heater & operation / Seat belts / Seats condition | Driver seat teared need to be fixed both driver and passenger seat control panels have fitting damage however not effecting operation and not causing a safety hazard. |
| Owner’s Manual – Service Logbook | Not present
|
